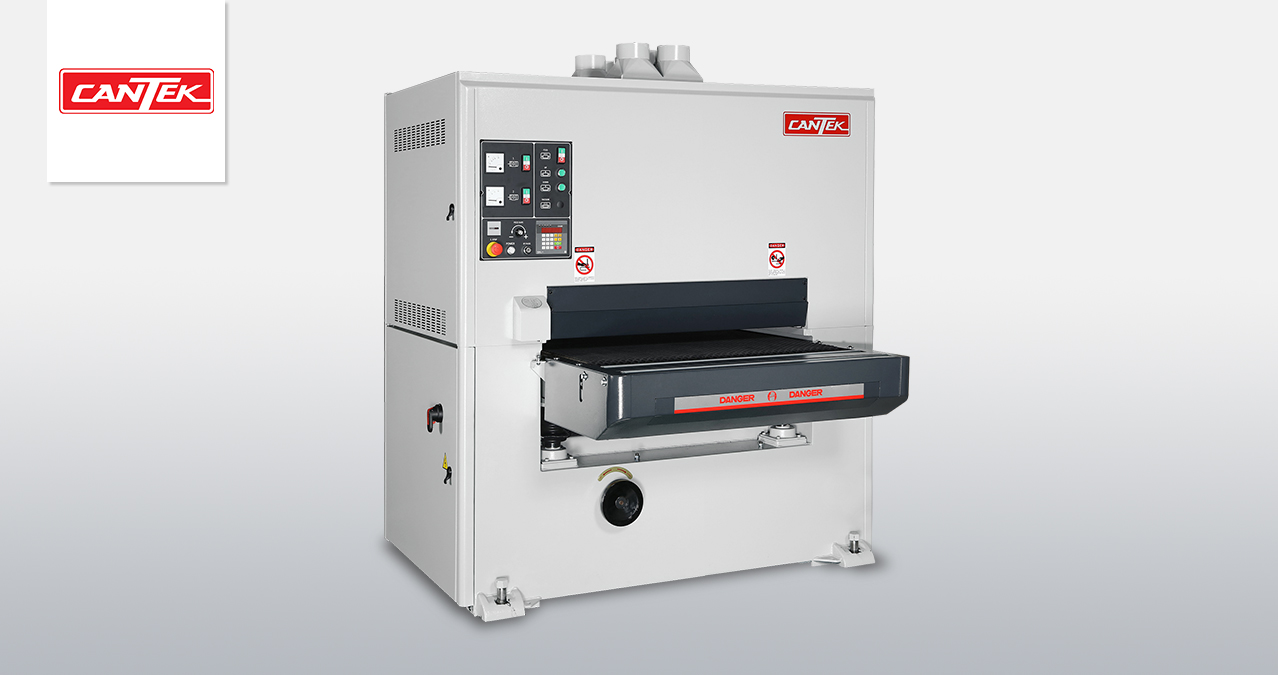

SR37DA | Cantek | Wide Belt Sanders

  • Power:
    38HP 230V 3PH
  • Description

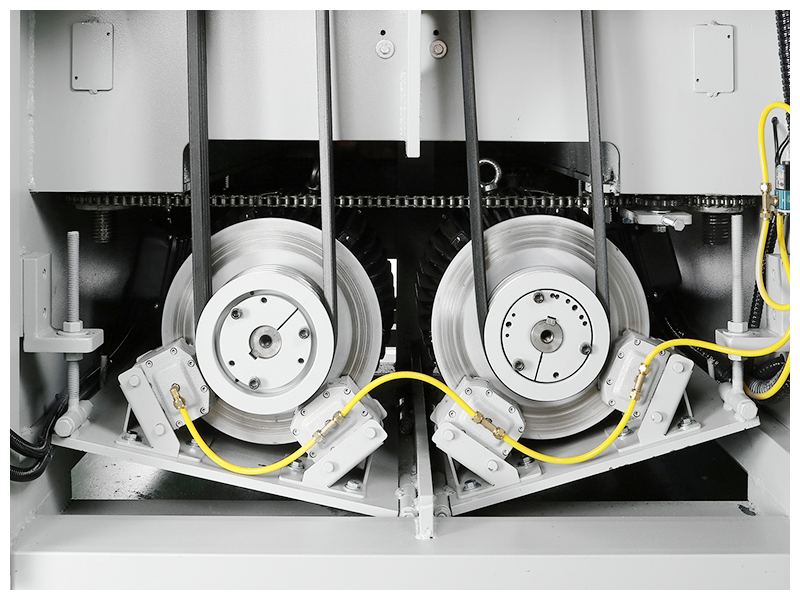

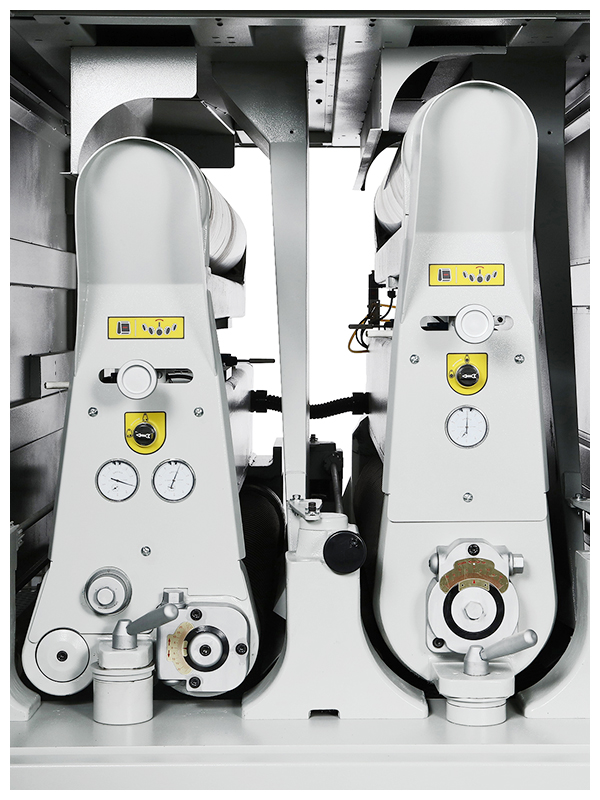

    The Cantek SR37DA 37″ Widebelt Sander combines a solid machine frame with unparalleled machine features resulting in superior sanding quality & reliability. The dual sanding heads result in less passes through the sander resulting in increased efficiency and throughput. The first sanding head is a steel contact drum with superior calibration capacities and durability. The second head consists of a versatile combination head with rubber contact drum and adjustable sanding platen to perform further calibration or finish sanding with finer sanding grits.  The 75″ long belts allow for longer runs between belt changes. The quick setting digital thickness control allows for accurate, automatic table adjustment for precise sanding results

  • Specs

    Abrasive belt size|37” x 75”

    1st Main motor|20 HP

    2nd Main motor|15 HP

    Feed motor|3HP

    Table rise/fall motor|1/2 HP

    Working width|36″

    Minimum part length|16.9″

    Maximum thickness opening|4.7″

    Feed speed: variable|13 to 59 FPM

    Pass line height|37″

    Dust outlet|6 @ 5”

    Compressed air pressure|PSI 85

    Compressed air volume|12 CFM

    Dust collection requirements|4002 CFM

    Net weight| 5732 lbs

    Machine dimensions|78” X 64” X 79”

    Shipping weight| 6283 lbs

    Shipping dimensions|87” X 70” X 82”

    Electrical requirements|230/3/60 = 102 amps
