S371 | Cantek | Wide Belt Sanders

  • Power:
    16HP 230V 3PH 47AMPS
  • Description

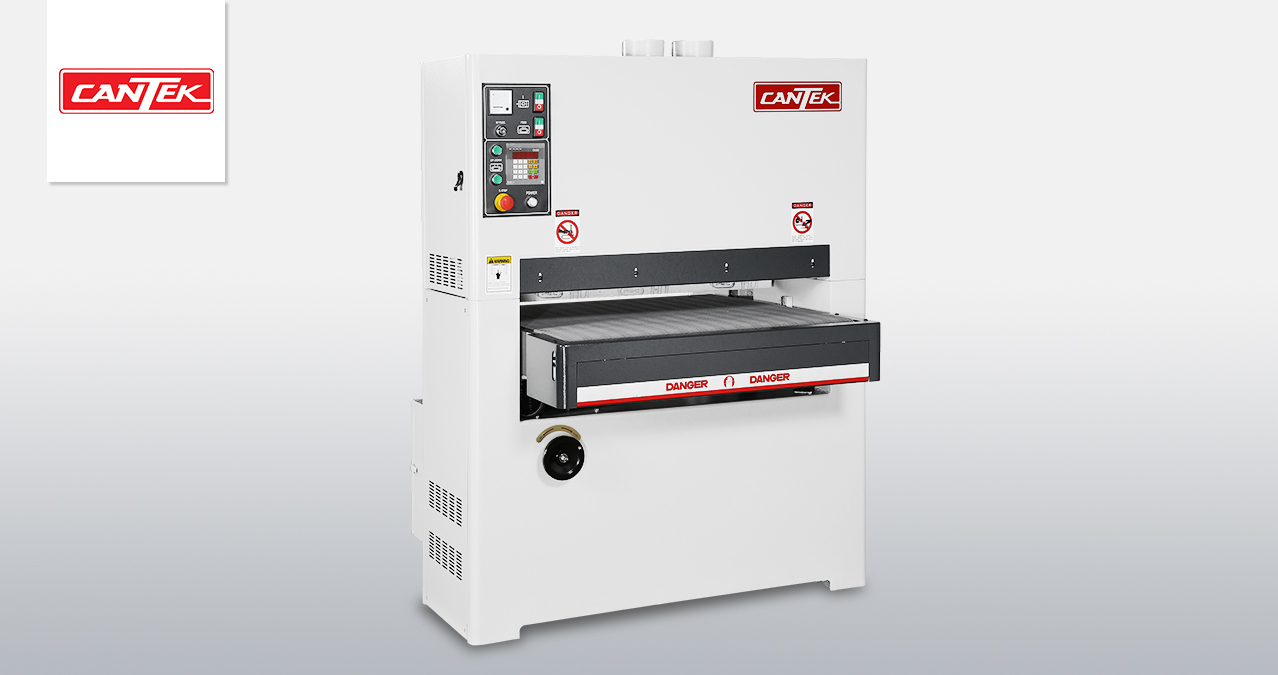

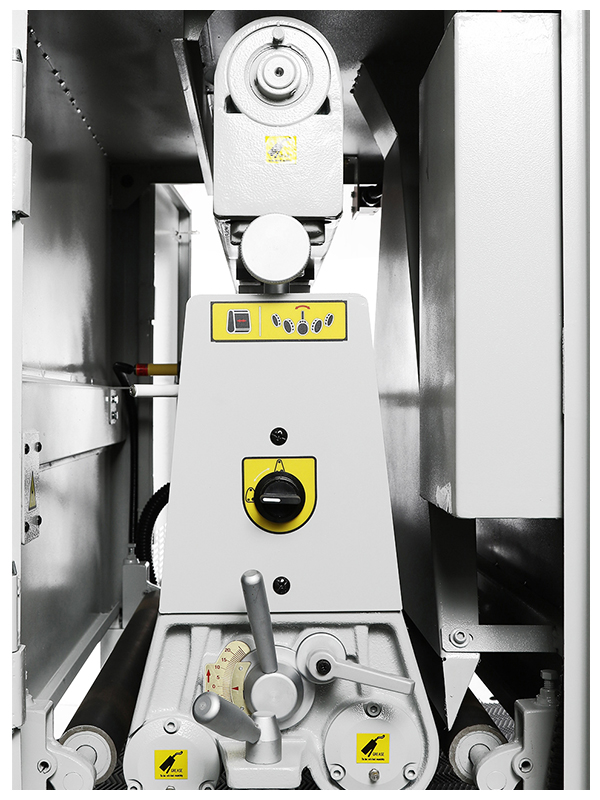

    The Cantek S371 36″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding.  The robust sanding unit and heavy-duty frame ensure optimum sanding results.  Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

  • Specs

    Abrasive belt size37” x 60”
    Main motor 15HP
    Feed motor 1HP
    Table rise/fall motor 0.25 HP
    Working width 37″
    Minimum part length 12.5″
    Maximum thickness opening 5″
    Feed speed: variable 15 to 49 FPM
    Pass line height 37″
    Dust outlet 3 @ 4”
    Compressed air pressure PSI 60
    Compressed air volume 7 CFM
    Dust collection requirements 1236 CFM
    Net weight 1609 lbs
    Machine dimensions 50” X 52” X 66”
    Shipping weight 1829lbs
    Shipping dimensions 52” X 57” X 76”
    Electrical requirements 230/3/60 = 47 amps
