PCS36 | Cantek | Cutoff Saws

  • Power:
    230/460V 3PH 15HP 42/21AMPS
  • Description

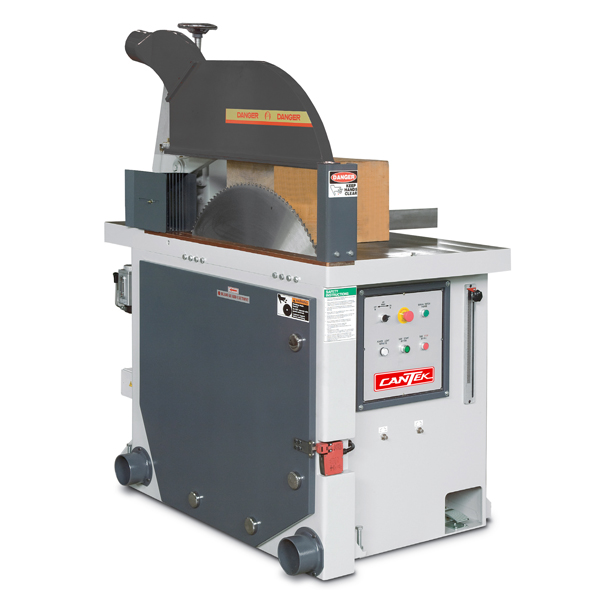

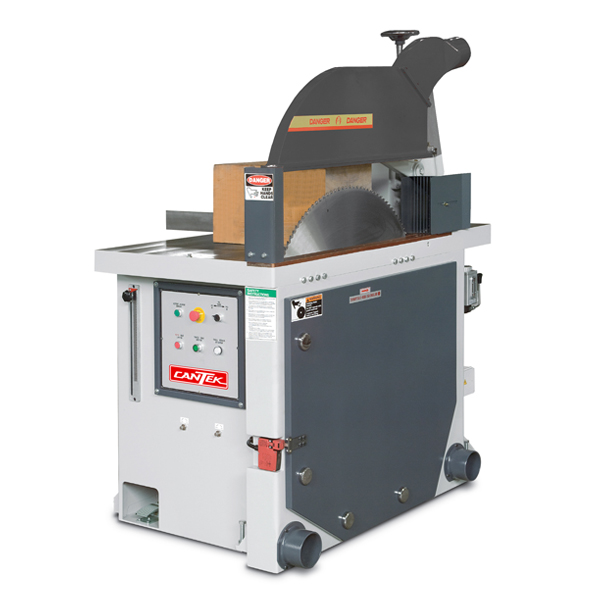

    The Cantek PCS36 36” Pneumatic Cut-Off Saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.

  • Specs

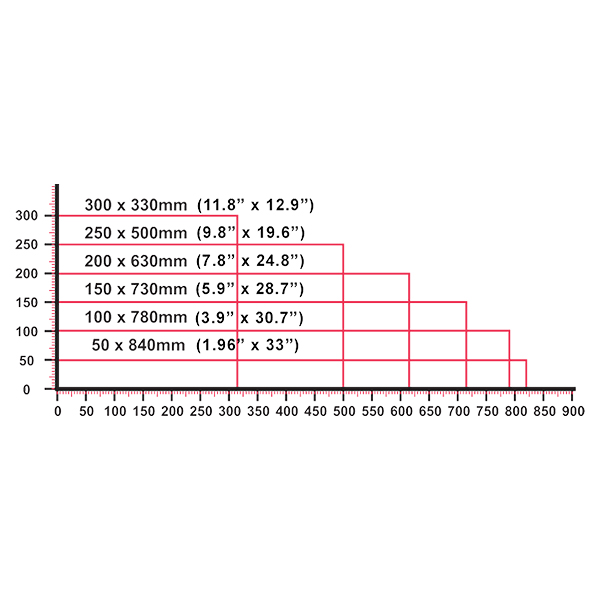

    Cutting capacity (thickness x width)|2″x33″, 4″x31″, 6″x29″, 8”x25”, 10”x20”, 12”x12”

    Cycle speed|10~15 strokes/min

    Cycle operation|Pneumatic

    Saw blade size|36”

    Saw arbor diameter|2″

    Saw blade speed|1600 RPM

    Dust exhaust diameter|Ø5″ x 2

    Motor|20 HP (25HP optional)

    Table size|57.7″ x 34.6″

    Net weight|2464 lbs

    Gross weight|2860 lbs

    Packing dimensions (L x W x H)|63”x42.5”x77”
