Description

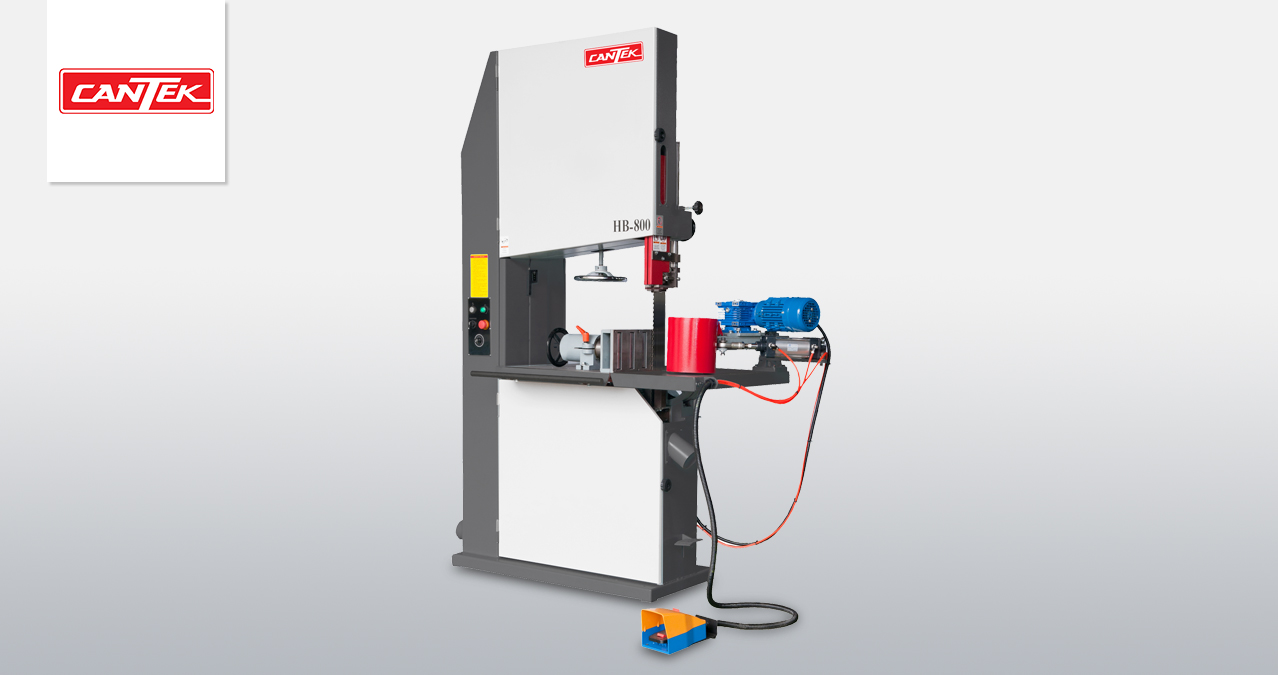

The Cantek HB800 32″ Band Resaw with Feeder is built to last. A 4” wide blade is driven by a powerful 20HP motor for precision straight resawing. Equipped with a 1HP power variable speed feed unit which is pneumatically actuated to provide consistent feeding of the workpiece. The feed speed can be variably adjusted from 3 to 56 FPM in accordance with the material type and thickness.
-
Specs
RESAW SPECIFICATIONS
Saw wheel diameter|32”
Motor|20HP
Table size|45 ¼” x 31 ½”

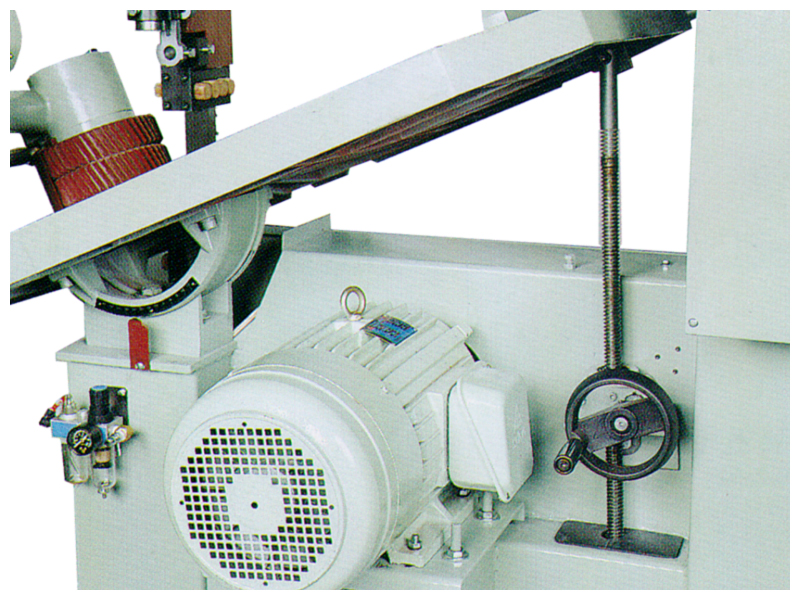

Table tilting|0 – 45°
Throat capacity|30-5/8”
Height capacity|15-3/8”
Blade width|4”
Width of wheel|3.543”
Blade speed|5024 FPM
Blade length|216” to 217-1/8”
Dust hood diameter|4” x 2
Machine weight only|1470 lbs.
Electrics (complete with feeder)|230/3/60 = 54 Amps|460/3/60 = 27 Amps
FEEDER SPECIFICATIONS
Length of roller|6″
Diameter of roller|8″
Feed speed|3 – 56 FPM
Motor|1HP
Air pressure|72 PSI
Fence adjustment|4.72″
Feed opening|6″
Net weight|286 lbs.
RESAW & FEEDER DIMENSIONS
Machine & feeder net weight|1756 lbs.
Shipping weight|2266 lbs.
Shipping dimensions|100” x 33 ½” x 55 ½”
