PCS30 | Cantek | Cutoff Saws

  • Power:
    230/460V 3PH 15HP 42/21AMPS
  • Description

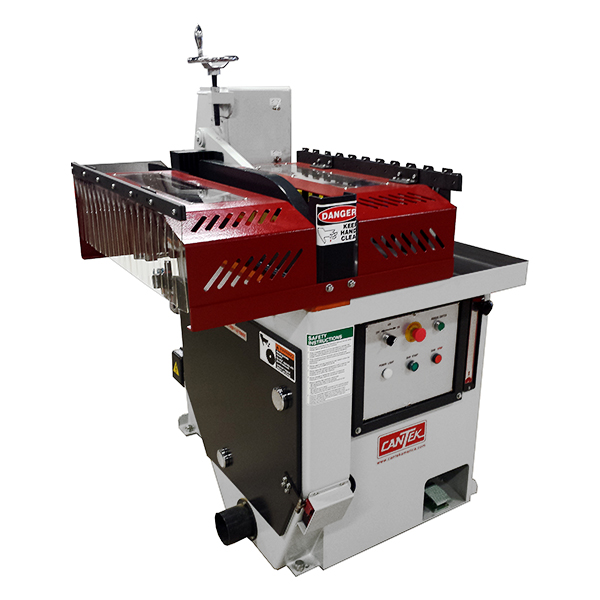

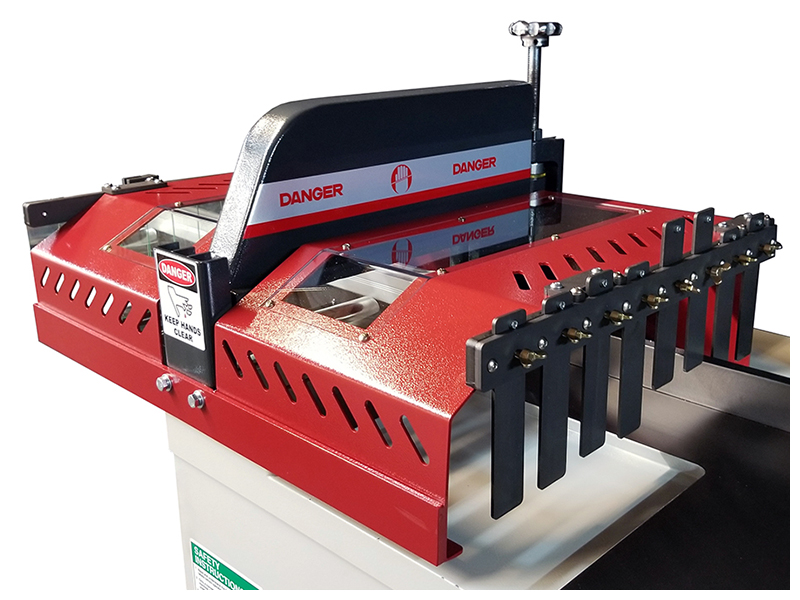

    The Cantek PCS30 30″ Pneumatic Cut-Off Saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful motor and adjustable cutting stroke ensure it can effortlessly cut through a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.

  • Specs

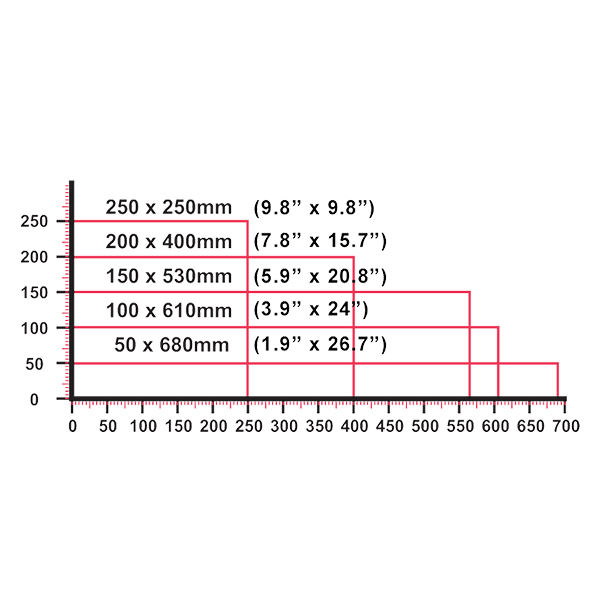

    Cutting capacity (thickness x width)|2″x27″, 4″x24″, 6″x21″, 8″x16″, 10”x10”

    Cycle speed|10~15 strokes/min

    Cycle operation|Pneumatic

    Saw blade size|30”

    Saw arbor diameter|2″

    Saw blade speed|1600 RPM

    Dust exhaust diameter|Ø5″ x 3

    Motor|15 HP (20HP optional)

    Table size|50.2″ x 31.9″

    Net weight|1430 lbs

    Gross weight|1694 lbs

    Packing dimensions (L x W x H)|56.3” x 40.5” x 65”

    Cutting capacity (thickness x width)|2″x27″, 4″x24″, 6″x21″, 8″x16″, 10”x10”

    Cycle speed|10~15 strokes/min

    Electrical requirements|460/3/60 = 21 Amps|230/3/60 = 42 Amps
