DC30 | Comatic | Power Feeders

  • Power:
    110/220V 1PH 1HP or 230V 3PH
  • Description

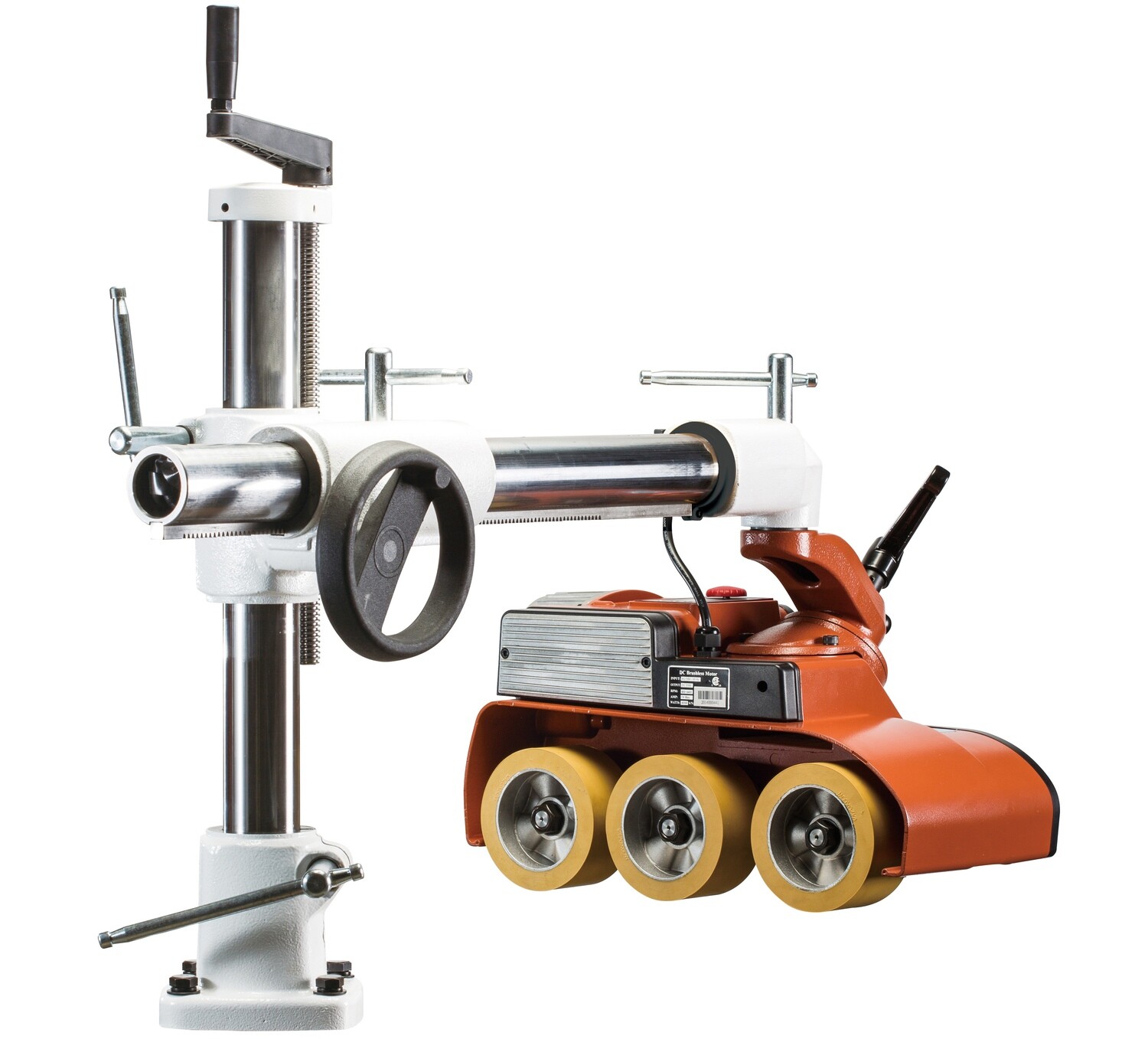

    With unmatched flexibility, efficiency, and torque, the patented Co-Matic 3 Wheel Brushless Variable Speed Power Feeder is the most innovative 3 wheel stock feeder in the world for woodworking shapers and table saws Why are shops choosing the DC30 over other 3 wheel feeders?

    1. DC Brushless Servo Motor

    Experience equivalent torque as 1HP AC motor feeders thanks to a powerful 2/3HP brushless servo motor while saving up to 70% in energy costs.

    2. Variable Speed & Digital Controls

    No more gear change-out. Easily identify your feed rate and change the speed with the turn of a button at 1 fpm increments until you reach your desired speed from 5-72 fpm

    3. Instant 90° Memo-Locking Swivel Adjustment

    Swivel the power feeder and lock it in instantly – perpendicular or parallel to the fence with the memo-locking feature not found on standard stock feeders.

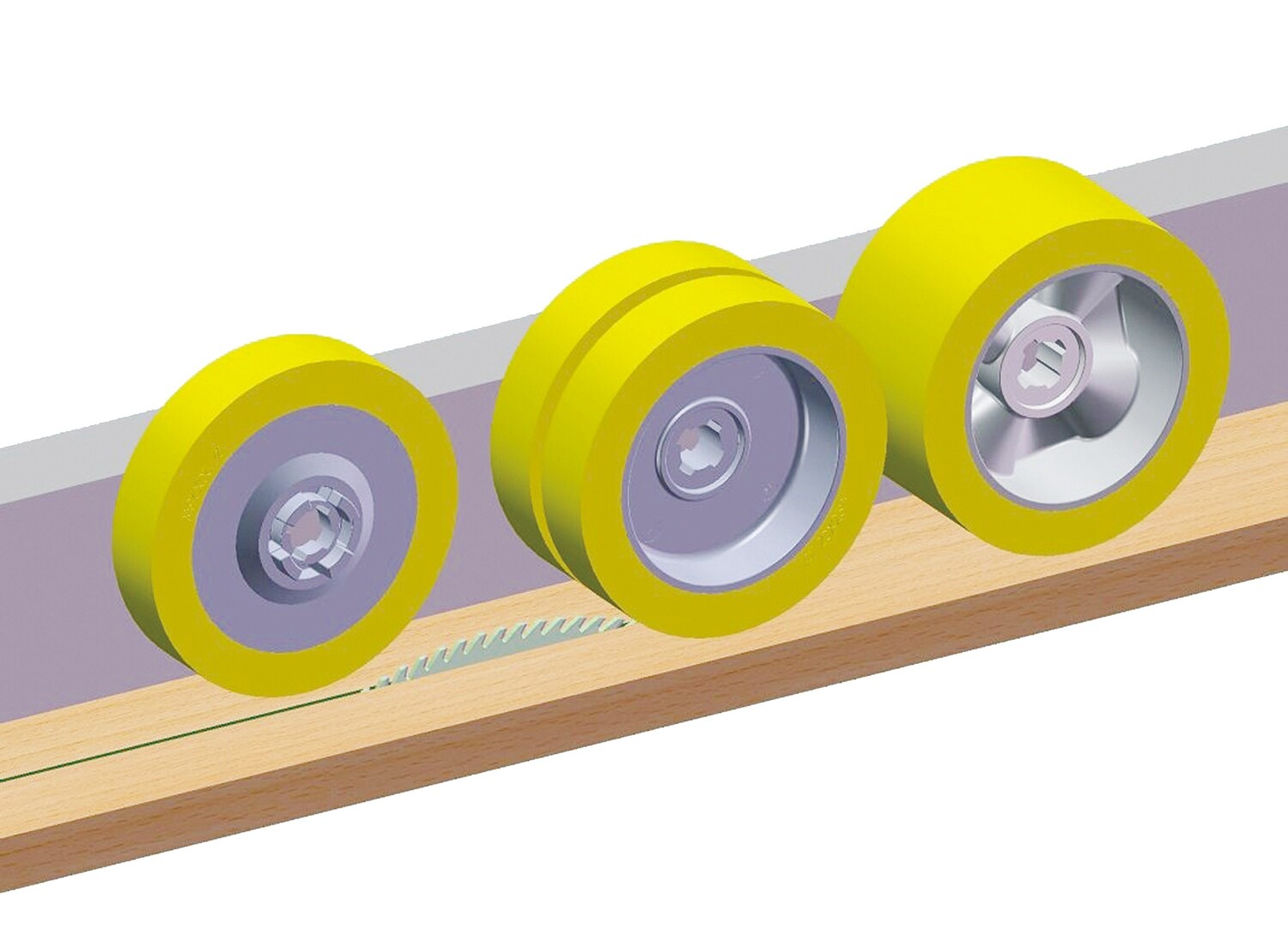

    4. Modifiable Wheel Layout

    Run this feeder with standard wheels, or simply replace them with thin, split wheel(s) for cutterhead or blade clearance

    *Thin RU21 wheels are sold separately and not included with feeder

    5. Upgrade to SS130 Smart Stand

    For more durability and increased flexibility, you can upgrade from the SG13 (US13) Heavy-Duty Feeder Stand to the SS130 Smart Stand which makes it model DS300 Smart Power Feeder.

  • Specs

    Horse Power & Rotation|2/3HP (1HP AC Equivalent), 1-3 Phase, 110-220V; Forward/Reverse
    Range of Speeds|5 – 72 FPM
    Roller Size|∅120 x 60 mm (∅4-3/4″ x 2-3/8″) &
    ∅120 x 25 mm (∅4-3/4″ x 1″)
    Roller Suspension|18 mm (3/4″)
    Base Bolt Pattern|108 x 90mm Center to Center

Videos of 3-Wheel Variable Speed Power Feeder

Variable Speed Power Feeders – Co-Matic DC Servo Series
