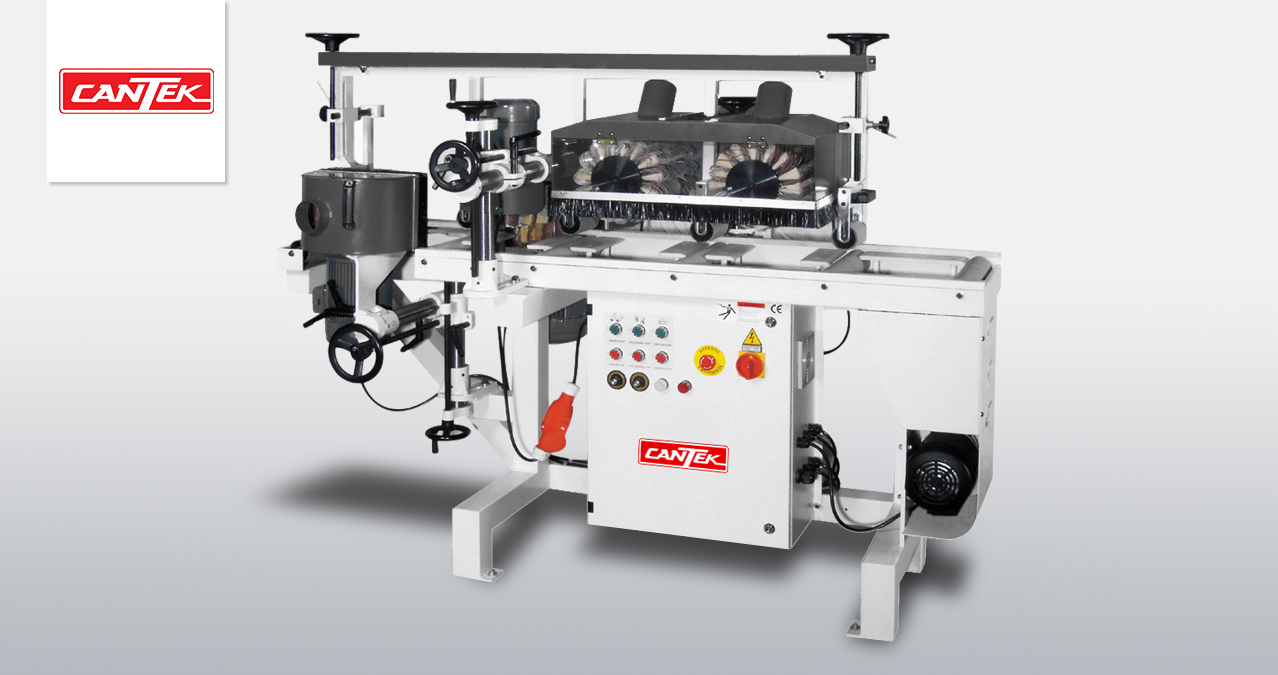

LBS300 | Cantek | Sanders

  • Power:
    230/460V 3PH
  • Description

    Eliminate hand sanding with our economical sanding and de-nibbing solution for linear profile. The Cantek LBS300-5S 3-sided lineal brush sander is designed to help with your everyday linear profile sanding needs. It can be used for white wood sanding and sealer sanding of linear parts such as mouldings, flooring, furniture components, window parts etc. The machine works well as a standalone unit, or as part of the finishing line.

    Why Cantek LBS300-5S 3-Sided Lineal Brush Sander?

    • Designed for sanding linear profiled wood on three sides

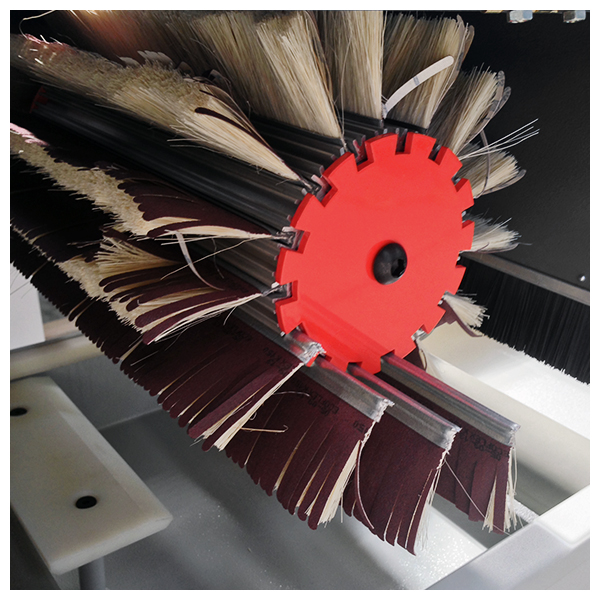

    • Brushing heads consist of abrasive cloth strips and cleaning brushes and are design to access profiled components.

    • Ideal for sanding and defibbing linear products including:

      • Moldings, skirting, architrave, flooring

      • MDF, hardwoods and softwoods

      • Paint, sealer, and lacquer sanding

  • Specs

    Max. working width|12″

    Max. working height|4″

    Min. work-pieces length|33″

    Min. work-pieces thickness|3/8″

    Feed speed (Variable)|20~56 FPM

    Speed of sanding wheel|200 ~ 1200 RPM

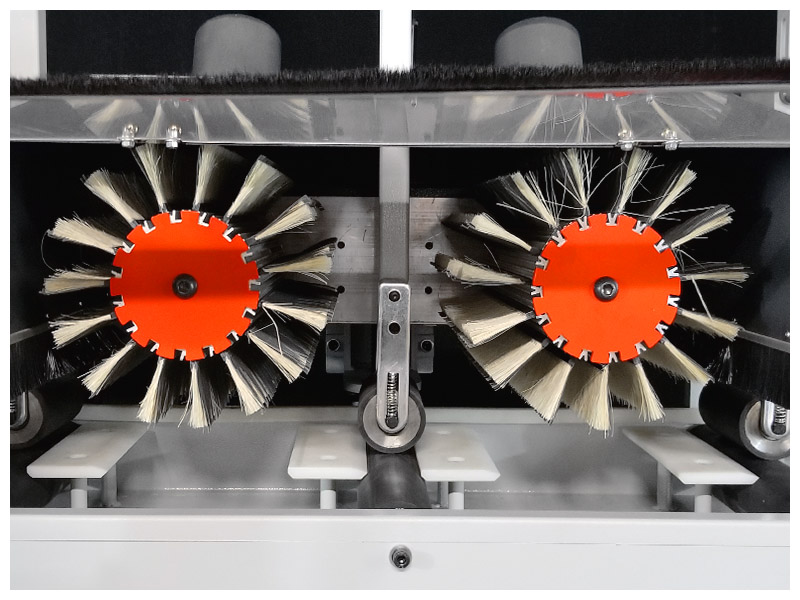

    Top brush head motor|2 x 3/4 HP

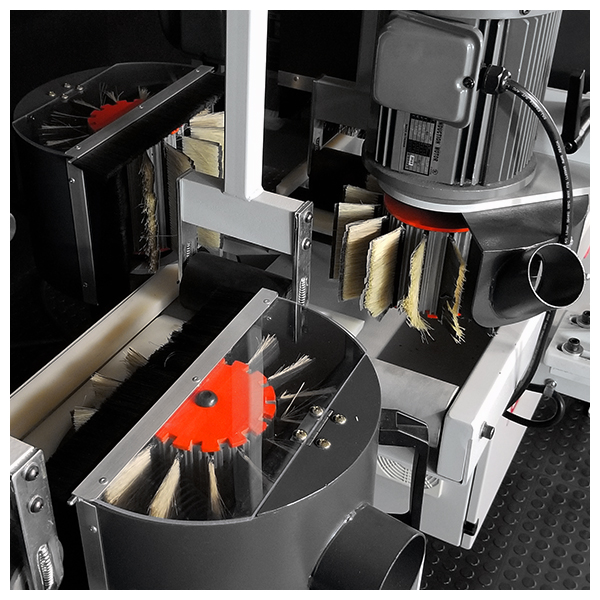

    Left brush head motor|1 x ½ HP

    Right brush head motor|1×1/2 HP

    Left brush head motor|1×1/2 HP

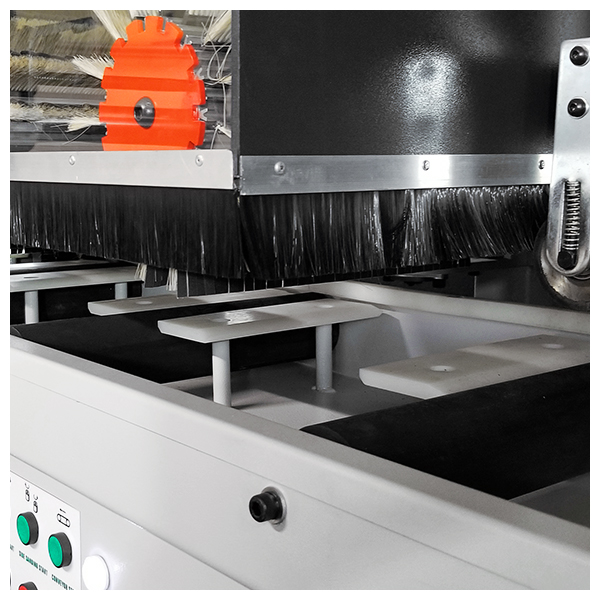

    Conveyor motor|1/4 HP

    Moving brush head motor|1/3 HP

    Dust ports|4 x 90 mm and 1 x 60 mm

    Machine dimension (LxWxH)|73” x 49” x 61”

    Packing dimension (LxWxH)|81” x 40” x 64”

    Net weight|748 LBS

    Gross weight|1034 LBS

    Power requirements|230/3/60 = 14 Amps|460/3/60 = 7 Amps
  • Download

Videos of 3-Sided Lineal Brush Sander

Cantek LBS300-5S Lineal Brush Sander
