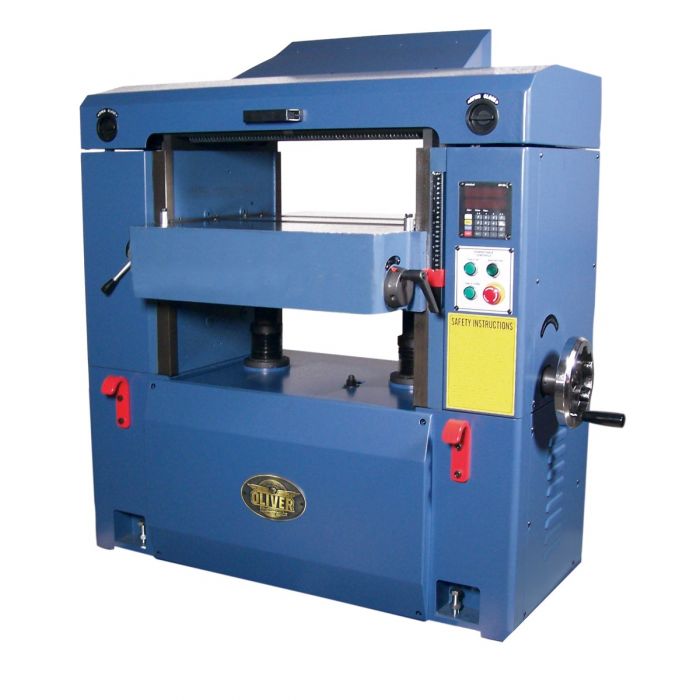

4470B | Oliver | Planers

  • Power:
    240V 1PH 10HP 43AMPS
  • Description

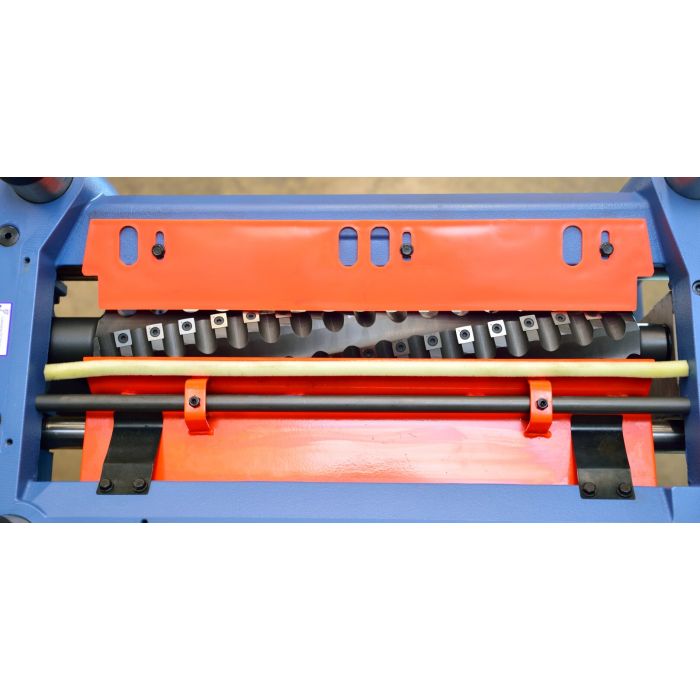

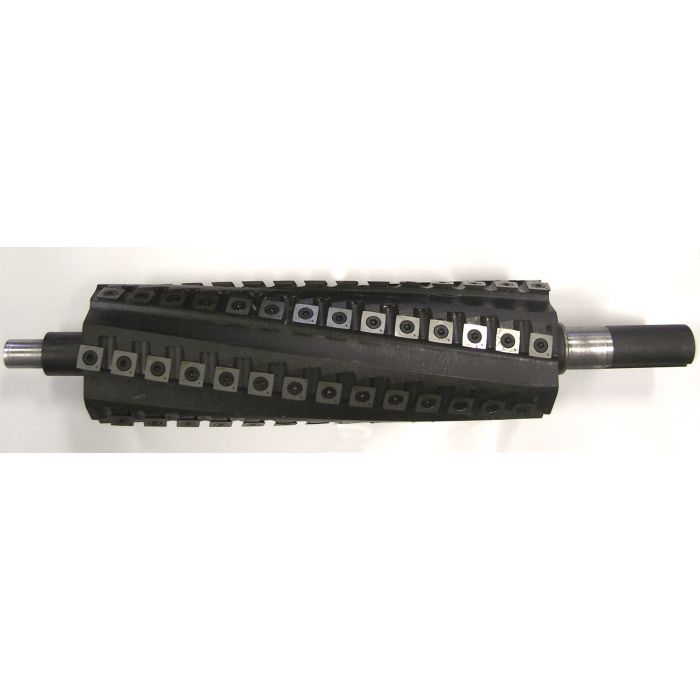

    • BYRD Shelix carbide inserts are indexed for quick changing.

    • Massive cast iron construction throughout.

    • Polished built-in table roller assists movement of rough stock.

    • Segmented infeed roller and sectional chip breaker easily handle rough stock.

    • 3-speed gear box provides the perfect feed rate.

    • Magnetic controls with emergency off switch for safer operation.

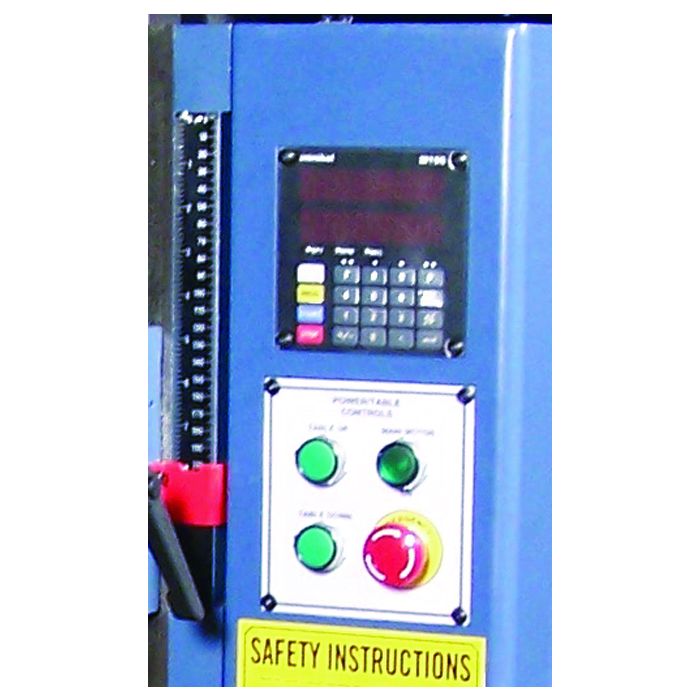

    • Digital readout allows precise thickness settings.

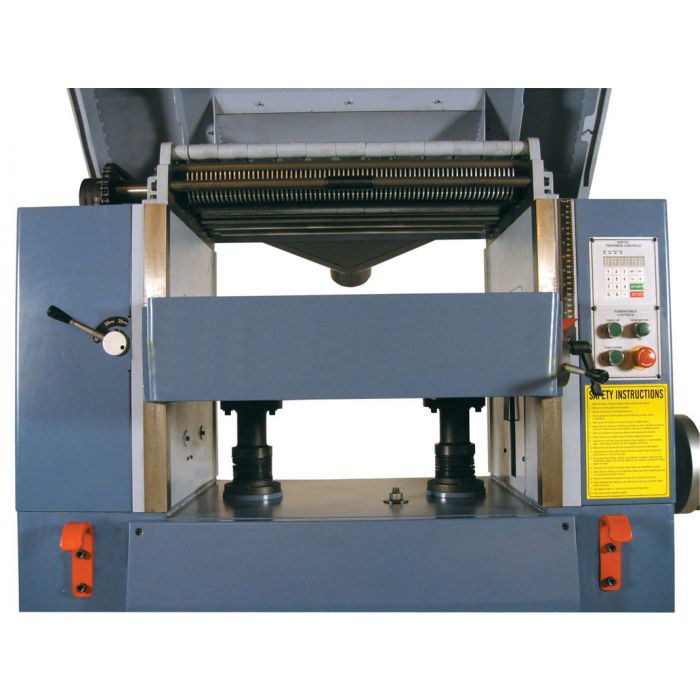

    • Hinged access to cutter head and feed rollers for quick set-up.

    • Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.

    • 5” dust chute easily handles chip removal.

    • 3 V-belt drive smoothly transfers power to drive train and cutter head.

    • Powerful TEFC motor available in single or three-phase.

  • Specs

    Stock No. (10HP, 1Ph, Byrd)|4470.101B

    Stock No. (15HP, 3Ph, Byrd)|4470.102B

    Maximum Stock Width|25”

    Maximum Depth of Cut|1/4” for 0” – 11-3/4” and 1/8” for 11-3/4” – 25″

    Maximum Stock Thickness|9-1/4”

    Minimum Stock Thickness|1/8” Manual 15/64” Automatic

    Minimum Stock Length |10″

    Dust Port Diameter|5″

    Minimum CFM Required|900 CFM

    Infeed Roller Diameter|3″

    Steel Outfeed Roller Diameter|3″ (x2)

    Feed Speeds|20, 25 and 30 FPM

    Bed Rollers|2, Adjustable

    Table Size|26” x 32”

    Cutterhead Diameter|3-3/8”

    Cutterhead Speed|4,800 RPM

    Number of Knives Byrd|125

    Footprint|47-1/2” L x 21” W

    Table Support|2-Column

    Motor 1Ph|10HP, 240V Only (43 Amps)

    Motor 3Ph|15HP, 240V/440V* Prewired 220V (38/19 Amps)

    Overall Dimensions|46”L x 23”W x 56”H

    Net Weight|1,732 lbs.

    Gross Weight|1,850 lbs
