Description

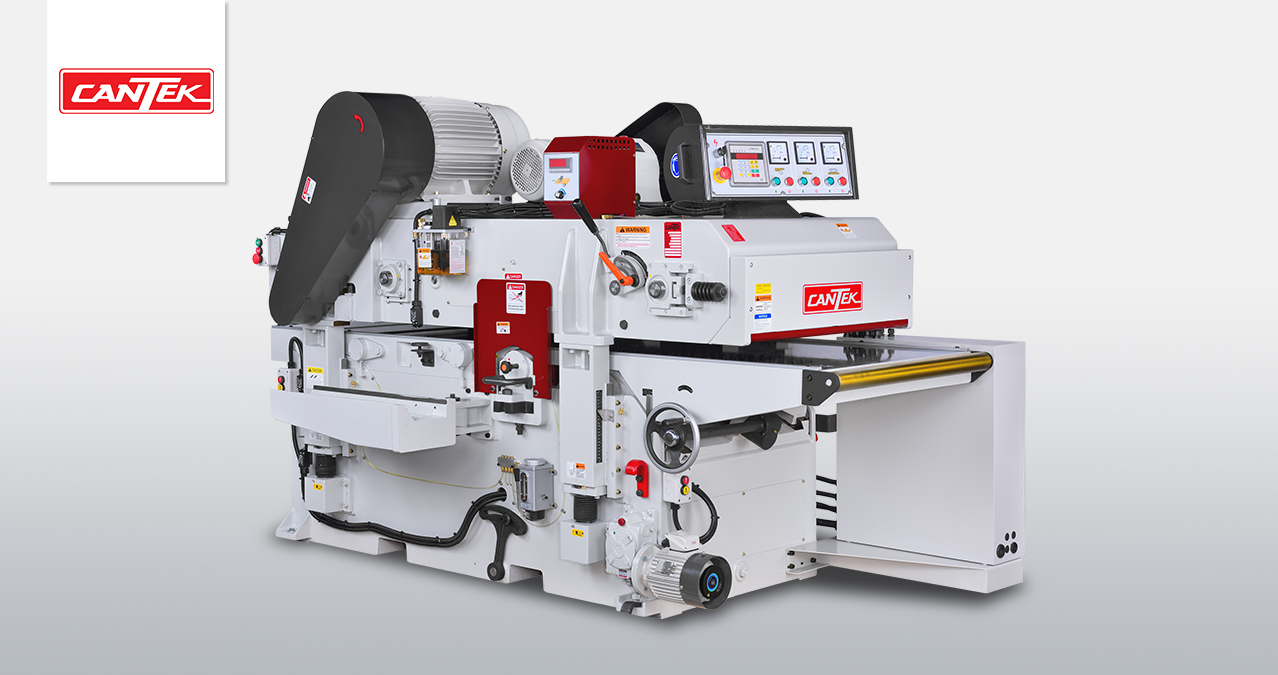

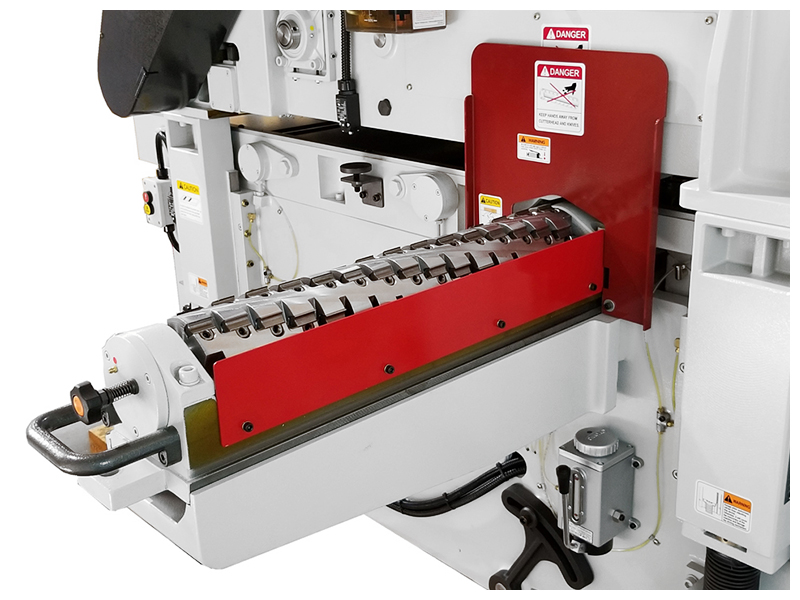

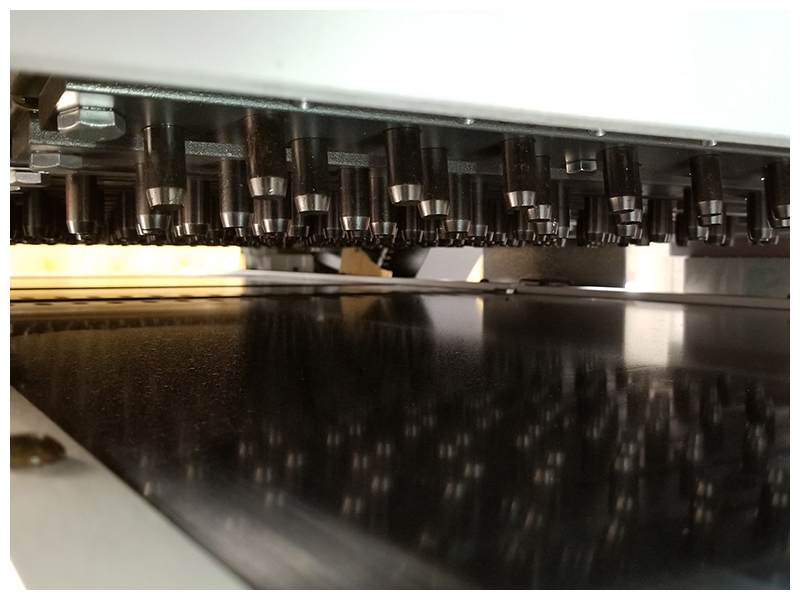

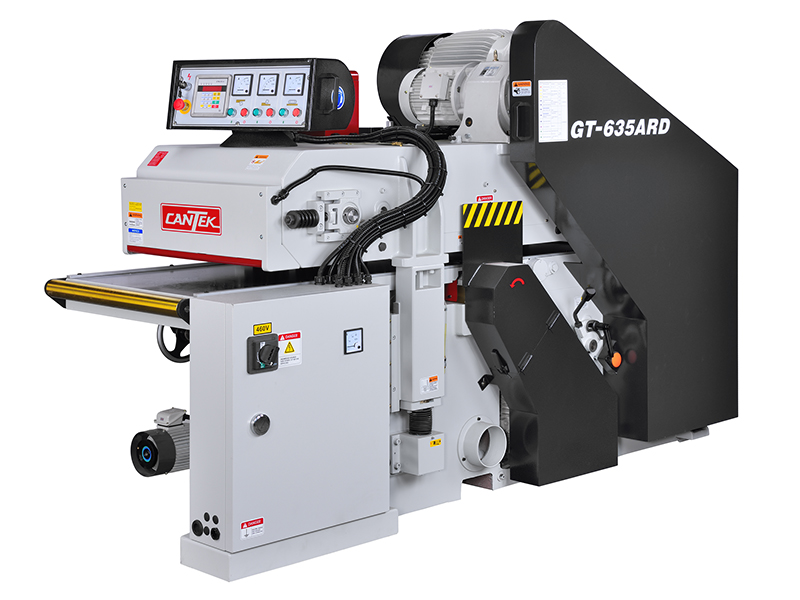

Plane your material efficiently in a single pass. The Cantek GT635ARD 25″ double surface planer has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head.
-
Specs
Maximum working width 25″
Maximum working thickness 8″ (16″, 20″, 24″ optional, please inquire)
Minimum working thickness 0.315″
Minimum workpiece length 12.2″
Bottom head motor 20 HP
Top planing head motor 25 HP
Feed motor 5 HP
Table elevation motor 1/2 HP
Cutterhead diameter 4″
Knife dimensions 30mm x 12mm x 1.5mm w/ bevels (96 pcs per head)
Cutterhead speed 5400 RPM
Feed speed (variable) 26-80 FPM
Dust ports 2 @ 6”
Table dimensions 27″ x 103″ (32″ from the floor)
Machine voltage 460/3/60 = 69.7 amps
575/3/60 = 56 amps
Machine dimensions (LxWxH) 105″ x 45.1″ x 67.7″
Net weight 6600 lbs
Packaging dimensions 109″ x 49″ x 74″
Gross weight 7700 lbs -
