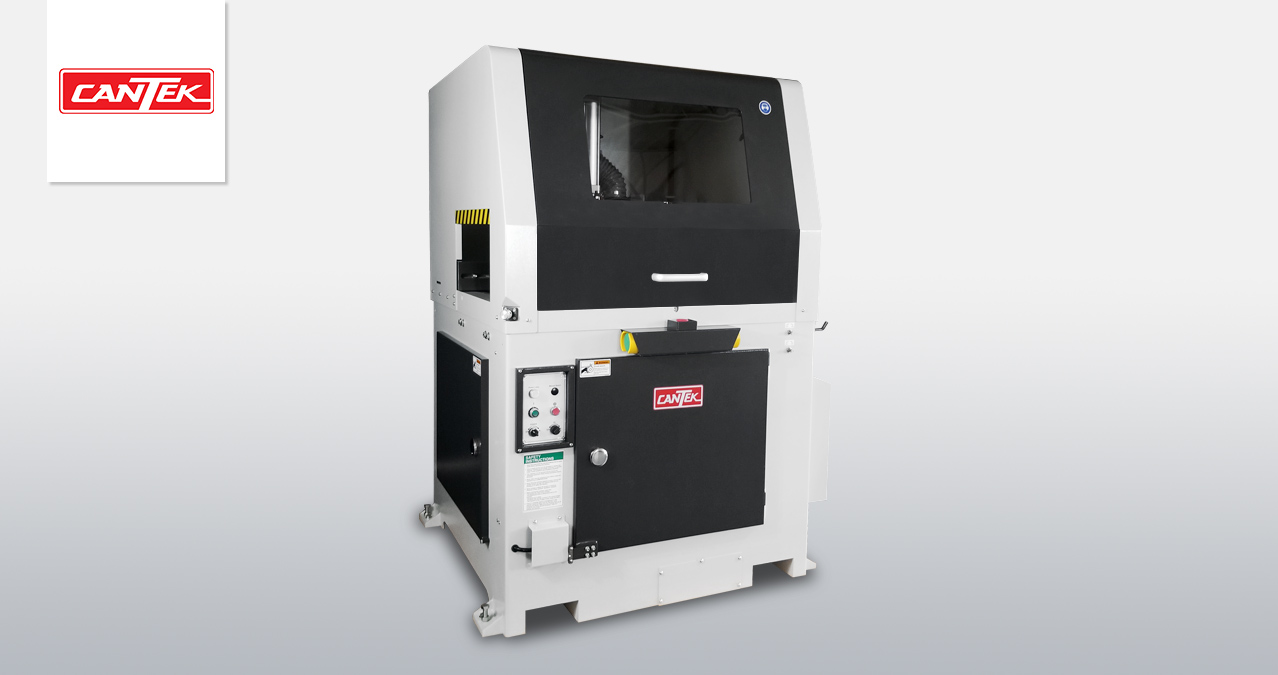

PCM610 | Cantek | Cutoff Saws

  • Power:
    230/460V 3PH 10HP
  • Description

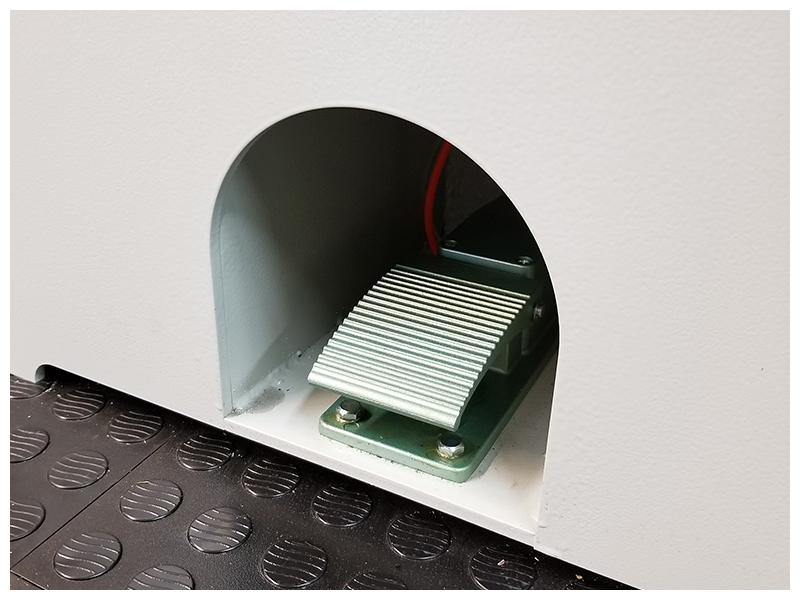

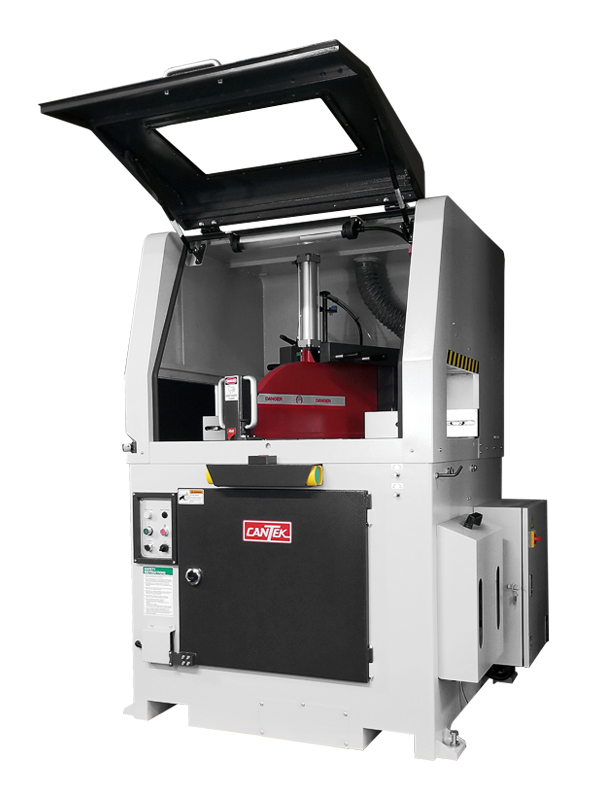

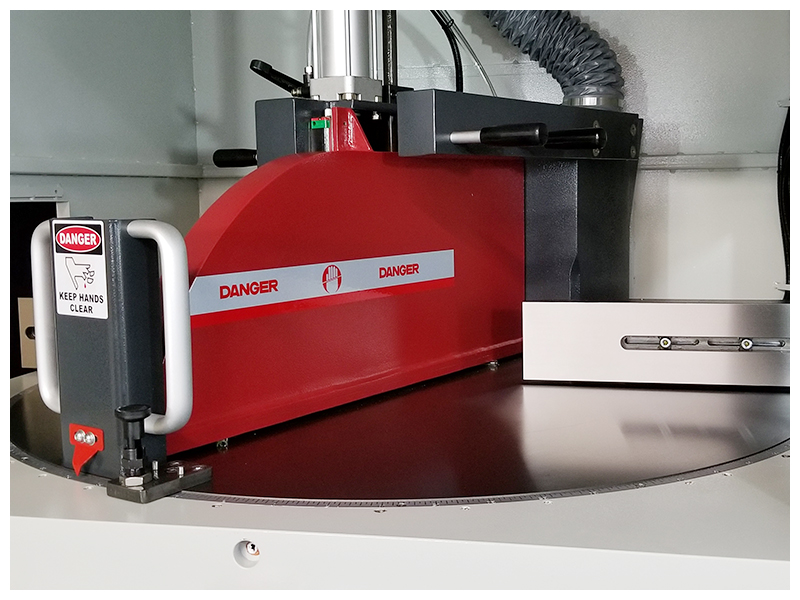

    The Cantek PCM610 24” Miter Cut-Off Saw is a precision pneumatic saw designed for cutting miters up to 60° in either direction.   The saw is automatically cycled pneumatically and activated by a foot switch to allow for fast positioning of the workpiece.  Capable of production cutting with up to 40 cuts per minute.  The cutting speed is adjustable to ensure the optimum finish result on your workpiece no matter the species or size.  The rotary table runs on ball bearings to ensure effortless rotation of the blade according to the desired cutting angle. The workpiece is clamped pneumatically, and the clamping guard runs on linear guideways for smooth and fast clamping operation.  The PCM610 is available with optional infeed and outfeed conveyor systems with manual stops or can be fitted with an automatic stop system such as Tigerstop for added productivity.

  • Specs

    Cutting angles|+60° ~ 0° ~ -60°

    Cycle speed|35~40 cuts/min

    Saw blade size|24″

    Saw arbor diameter|1″

    Saw blade speed|2000 RPM

    Dust exhaust diameter|Ø4″ x (2)

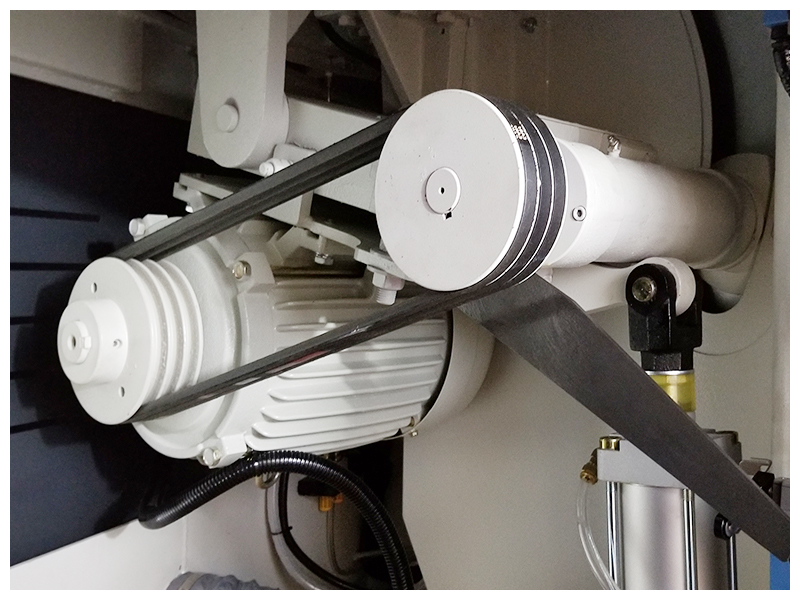

    Motor|10 HP

    Table size|45 ¼” x 29 ½”

    Net weight|1785 lbs

    Gross weight|2116 lbs

    Packing dimensions (L x W x H)|59″ x 53.5″ x 78.75″

    Electrical requirements|230/3/60 = 28 Amps|

    460/3/60 = 14 Amps
