R19F | Ritter | Boring Machines

  • Power:
    3HP 230/460V 3PH
  • Description

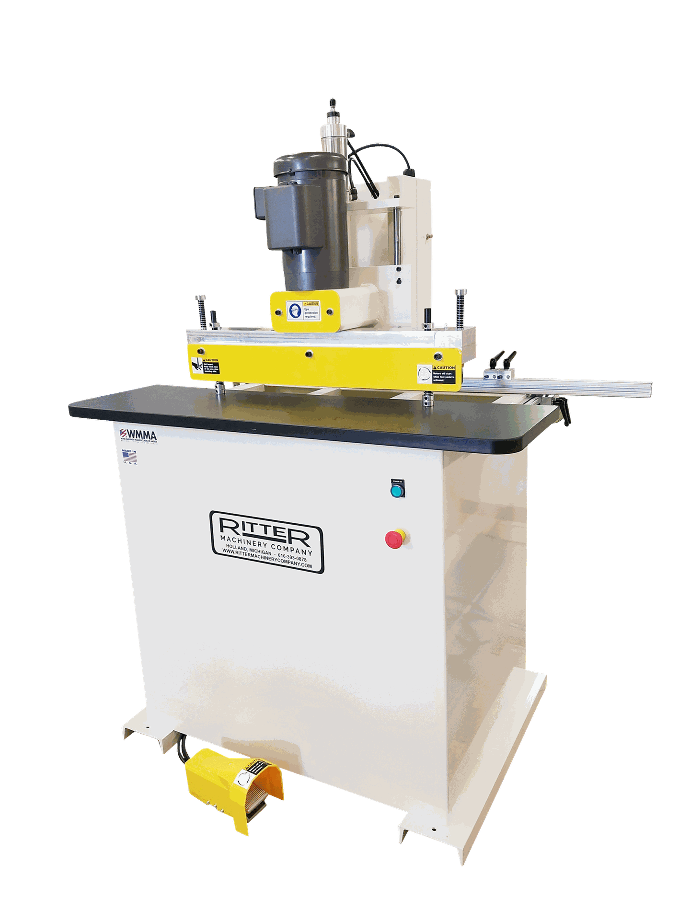

    The RITTER R19F is the mid level model in the line boring drills that Ritter Machinery has to offer. The R19F is both affordable and built to last. The R19F is a multi-spindle drill used for adjustable shelving. No more using templates that wear out quickly and lose accuracy. The R19F machine is easily adjustable for entry and exit points, and cleanly allows the user to repeat the drill hole pattern with indexing pins on both the left and right hand side of the machine. The rear fence is adjustable allowing you to set your row offset from the edge. The pneumatic cycle allows hands free operation of the machine by using a foot pedal.

  • Specs

    •23-Spindle Gear Driven Drill Head on 32mm Centers

    •(12) Right Hand, (11) Left Hand

    •60″ Back Fence with (4) Adjustable Material Stops

    •Right and Left Hand Work Stations

    •(2) Spring Loaded Index Pins

    •(2) Spring Operated Material Clamps

    •Adjustable Boring Depth

    •Pneumatic Driven Boring Cycle

    •Tooling Not Included

    Technical Data and Specifications:

    Drive Motor: 3 HP

    Spindle Centers: 32mm

    Collet Size: 10mm

    Throat Capacity: 12″

    Maximum Material Thickness: 1.25″

    Electrical: 230V, 3Ø, 60Hz, 20A or 460V, 3Ø, 60Hz, 10A

    Air: 2 CFM at 80 – 100 PSI

    Work height: 38.25″

    Footprint: 36″ x 60″

    Table Area: 14″ x 48″

    R19F1 – 230V, 1Ø, 60Hz (2 HP Spindle Drive Motor, TEFC) Optional

    Shipping Weight: 645 LBS

    Shipping Dimensions: 44″ L x 64″ W x 77″ H
