Description

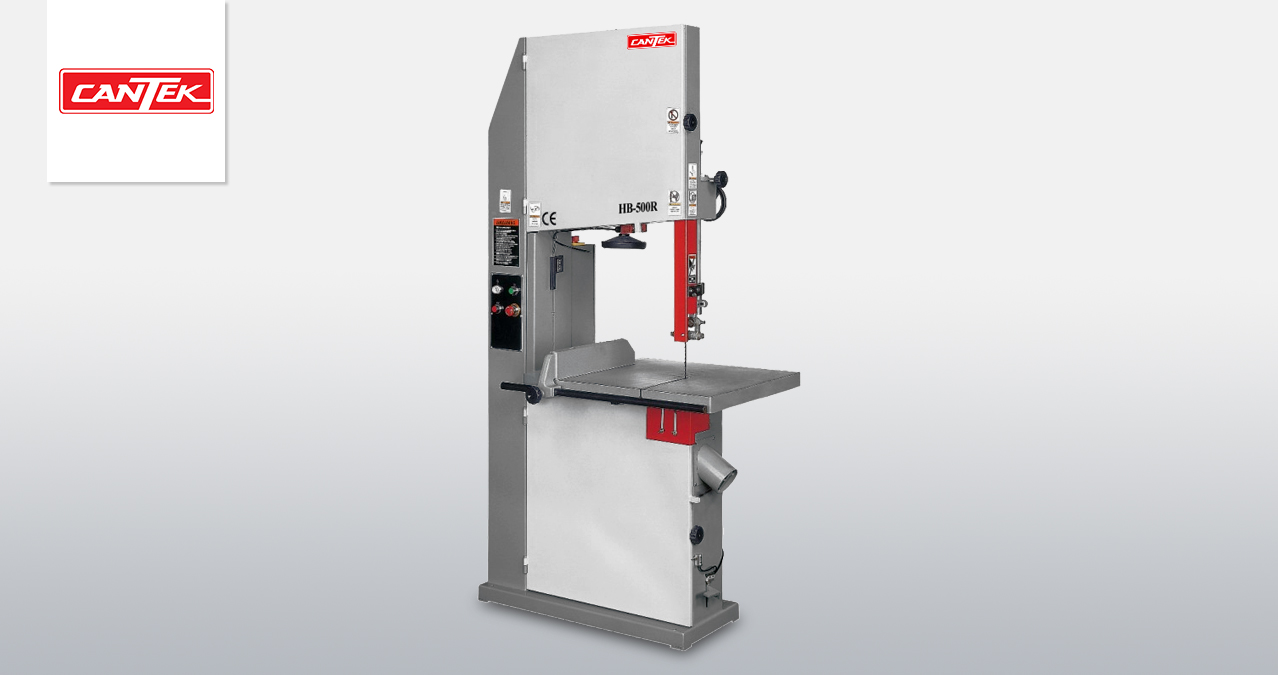

The Cantek HB500R 20″ Bandsaw incorporates a robust design with economical price point. With its industrial cast iron wheels and table assembly it can handle any job. With its powerful 3HP motor and capacity to run from a ¼” to 1 ¼” blade it can hand a wide range of cutting requirements. The upper and lower blade guides provide maximum stability no matter the blade you are cutting with. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.
-
Specs
Saw wheel diameter 20″
Motor 3HP
Table size 26 ¾” x 20 ½”
Table tilting 0 – 45°
Throat capacity 18 ¾”
Height capacity under guide 11-7/8″
Width of wheel 1.38″ (35mm)
Blade speed 4450 FPM
Blade length 156 ¼” ~ 157 ½”
Blade width ¼” ~ 1 ¼”
Dust hood dia. 4″
Net weight 616 lbs.
Shipping weight 770 lbs.
Machine dimensions 38.2″ x 27 ½” x 74″
Shipping dimensions 77 ½” x 22.8″ x 39 ¾”
Electrical 230/1/60 = 17 Full Load Amps
230/3/60 = 9.6 Full Load Amp
