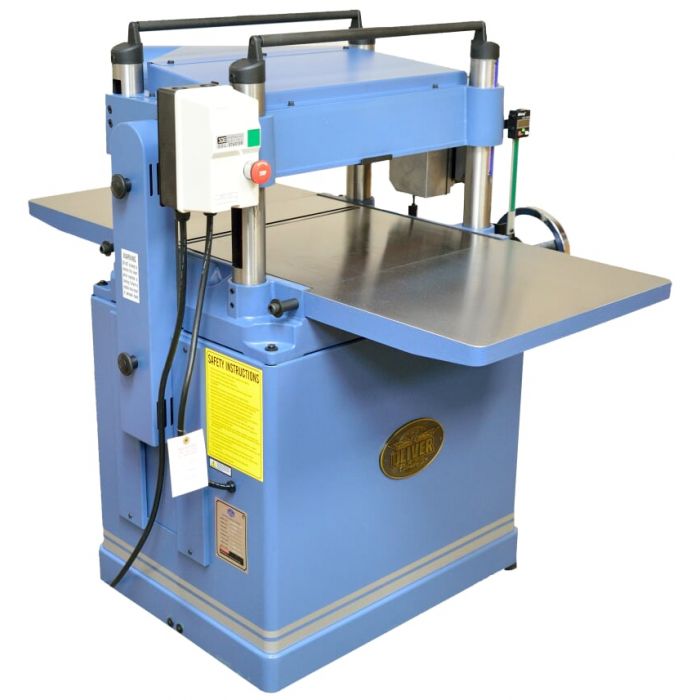

4430 | Oliver | Planers

  • Power:
    230V 1PH 5HP 18AMPS
  • Description

    •Unique design allows motor and cutter head to move in unison.                                                                                                                                                                           •Auto-depth lock features twin nitrogen cylinders virtually eliminates sniping.

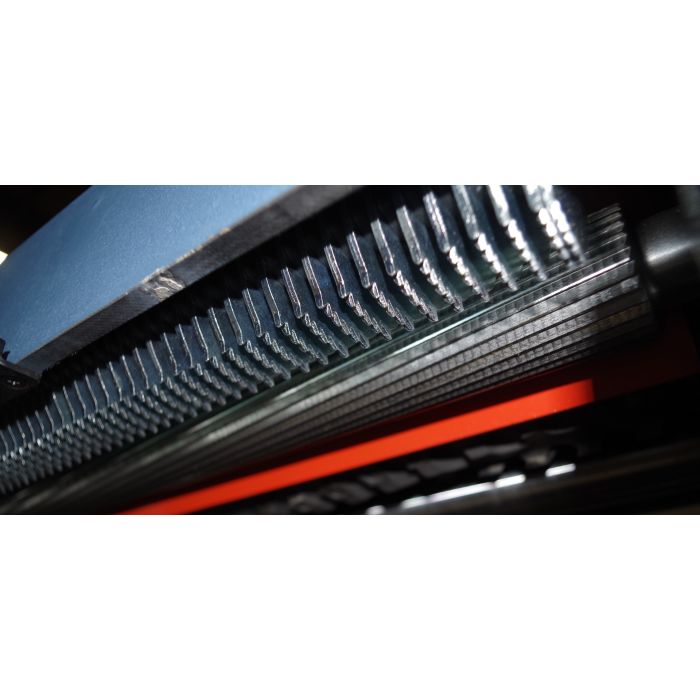

    •Helical cutter head with premium carbide inserts.

    •4-sided cutting inserts are indexed and easy to replace.

    •Heavy cast iron construction including extension wings.

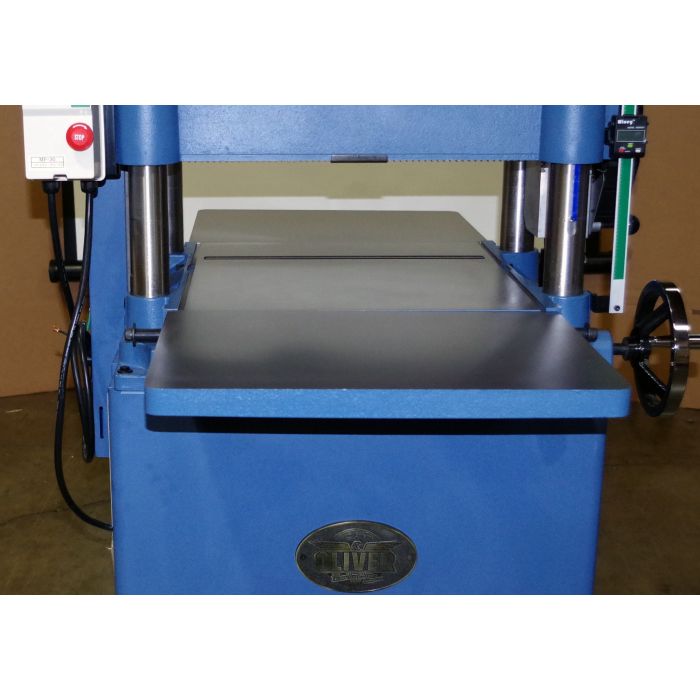

    •Table and extensions wings are precision ground for smooth stock feeding.

    •Table is fixed allowing easy use of auxiliary stock support.

    •Wixey digital read out allows precise thickness settings.

    •Large hand wheel and support struts allow easy height adjustment.

    •Four-post design ensures head alignment regardless of stock thickness.

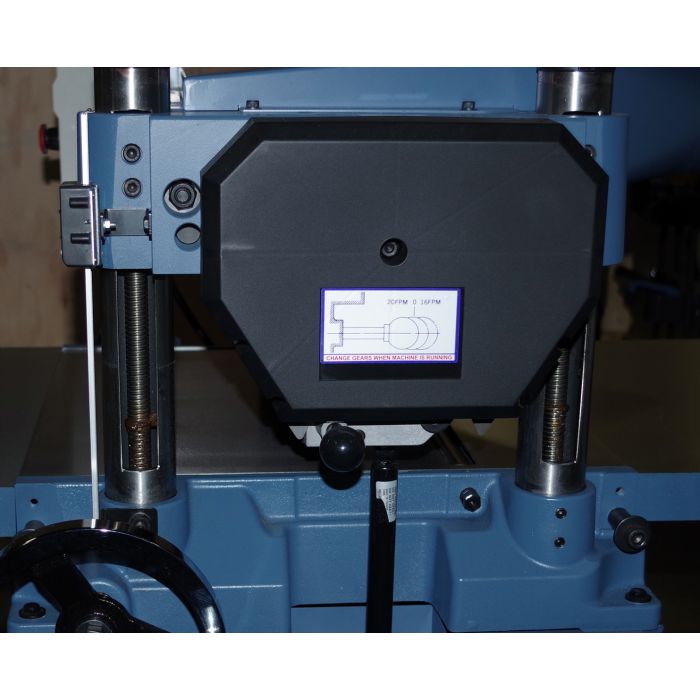

    •Two-speed feed gearbox for better cuts.

    •Oil bath gear lubrication for years of performance.

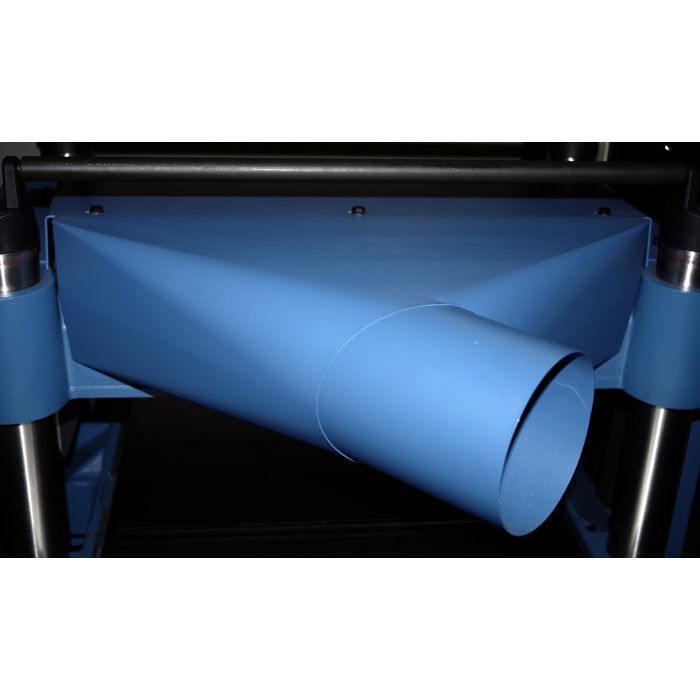

    •5” port allows excellent dust management.

    •Built-in mobile base allows easy movement in the shop.

    •Magnetic switch for added protection and safety.

  • Specs

    Maximum Stock Width|20″

    Maximum Depth of Cut |1/8″

    Maximum Stock Thickness|8″

    Minimum Stock Thickness|1/4″

    Minimum Stock Length|7″

    Dust Port Diameter|5″

    Feed Speeds|16/20

    Bed Roller|1, Adjustable

    Table Size|20″ x 21″

    Table Size w/Extension Wings|20″ x 51″

    Cutterhead Diameter|3-1/4″

    Cutterhead Speed|5,000 RPM

    Number of Knives|68

    Motor|5HP 1Ph 230V (1Ph, 18 Amp)

    Overall Dimensions|45” x 35” x 43.5”

    Net Weight|528 lbs.

    Gross Weight|625 lbs.
