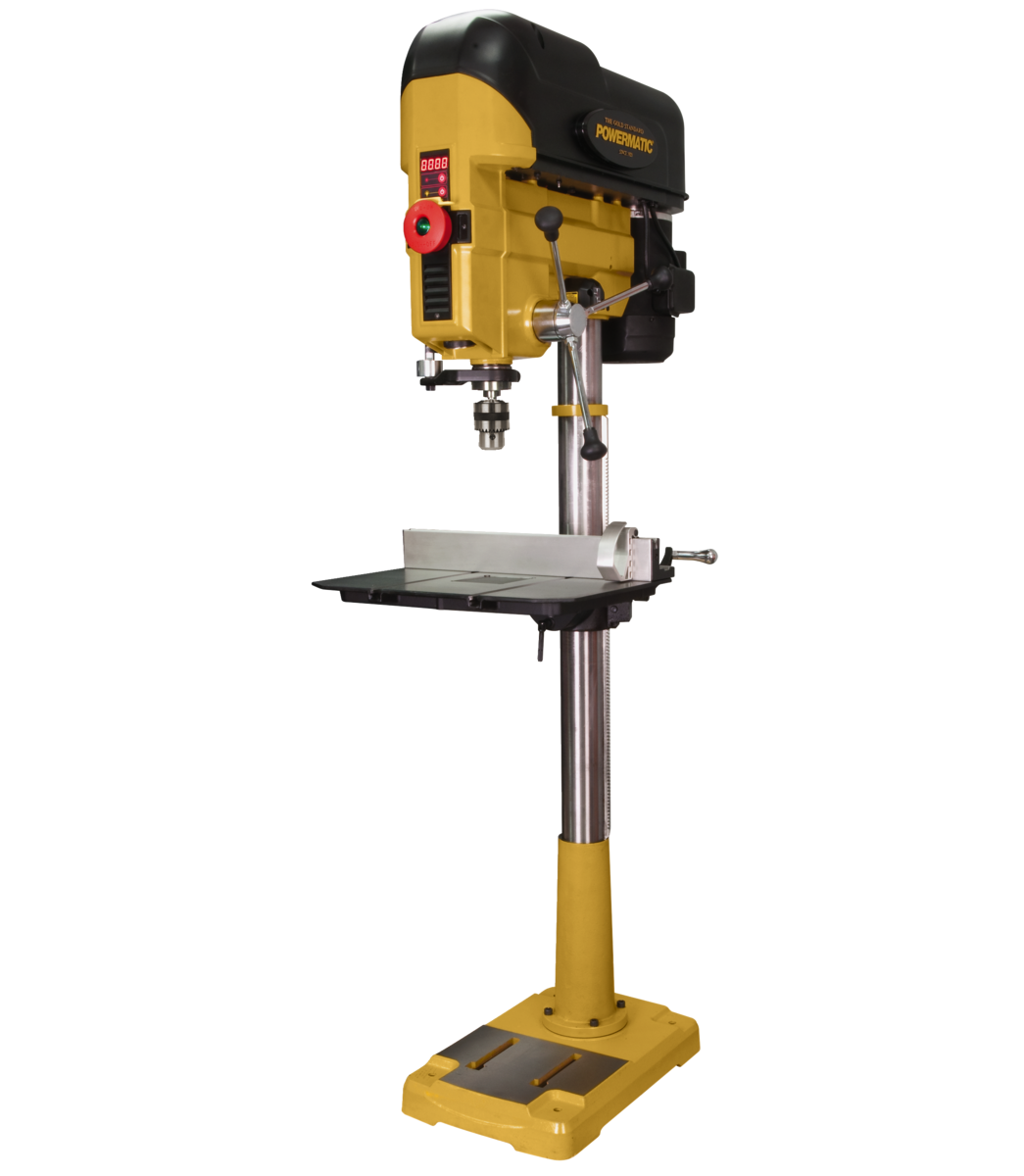

PM2800B | Powermatic | Drill Presses

  • Power:
    1HP 1PH 115/230V
  • Description

    • 6” of quill travel with one revolution of the handle

    •  Digital RPM readout allows user to optimize the spindle speed to the application

    • Fence system adjustable for a perfect 90-degree relationship to the table and for rapid alignment of stock

    • Includes 5/8″ keyed chuck

    • Laser guides provide an accurate indication for tool point

    • Mechanical variable speed allows for full range of speeds with no belt changes

    • Oversize cast iron base for added stability

    • Reversible handles can be mounted on either side of the machine for more comfortable working of the quill

    • Two independently adjustable LED work lights eliminates shadows

    • Work table can be rotated to a full 90 degree position

  • Specs

    Stock Number|1792800B

    Base Dimensions (In.)|13-1/2 x 20-1/2

    Base Work Table (In.)|10 x 12

    Chuck Size (In.) |5/8

    Column Diameter (In.)|3-1/8

    Gross Weight (Lbs)|266

    Motor Amps|20/15

    Motor (HP)|1 HP, 115/230V, 1Ph

    Motor Power (HP)|1

    Motor Voltage (V.)|115/230

    Net Weight (Lbs.)|246

    Overall Dimensions (L x W x H) (In.)|18 x 20.25 x 71

    Prewired Voltage (V.)|115

    Prop 65|Cancer and Reproductive Harm

    Quill Diameter (In.)|2.6

    Spindle Distance to Base (In.)|44-3/4

    Spindle Travel (In.)|6

    Style (Type)|Floor

    Swing (In.)|18″

    Weight (Lbs.)|246
