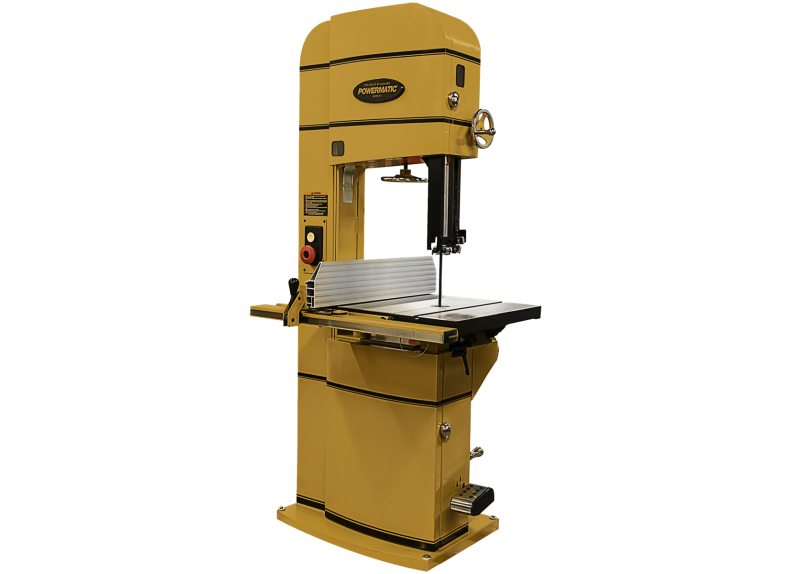

PM1800B | Powermatic | Bandsaws

  • Power:
    5HP 1or3PH 230V
  • Description

    At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years. *Computer balanced cast iron wheels reduce vibration

    *Computer balanced cast iron wheels reduce vibration and noise

    *Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety

    *Micro-adjustable, virtually tool-less bearing guide system gives close blade control while reducing friction

    *Oversized side plate can be used in the horizontal or vertical position

    *Solid cast iron upper and lower wheels create the momentum needed for heavy resaw

    *Special grooved thrust bearing stabilizes smaller blades

    *Sturdy cast iron table and trunnion assembly offers maximum rigidity for large work pieces

    *Accu-Fence has complete adjustability for aligning to blade and squaring to table

  • Specs

    Blade Length (In.)|160
    Blade Speed (SFPM)|2300/4400
    Cutting Capacity Height (In.)|18
    Cutting Capacity Width (In.)|18.0000
    Dust Collection Minimum CFM Required (CFM)|600
    Dust Port Outside Diameter (In.)|4
    Minimum Saw Blade Width (In.)|1/8
    Motor Power (HP)|5
    Motor Voltage (V.)|230/460
    Prop 65|Cancer and Reproductive Harm
    Recommended Circuit Size (Amps.)|20
    Style (Type)|Floor
    Table Height from Floor (In.)|38
    Table T-Slot (In.)|3/4
    Table Tilt (Deg.)|45 Right / 10 Left
