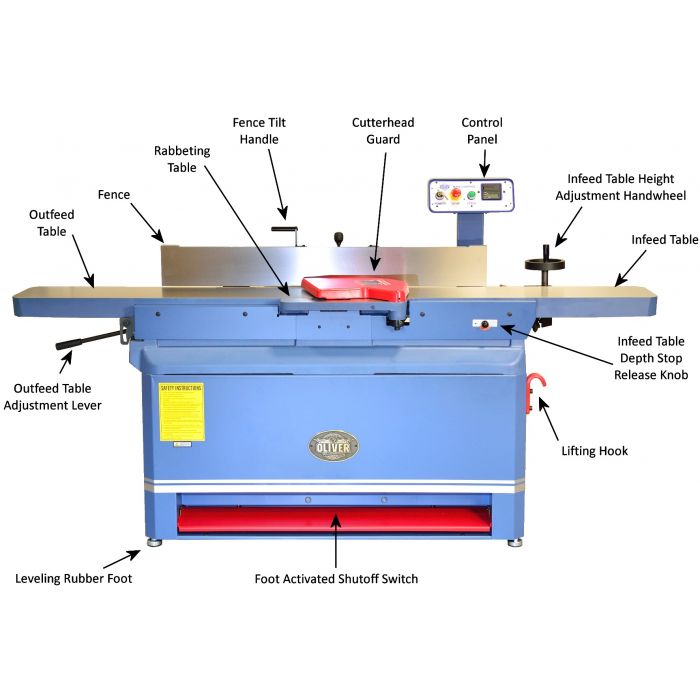

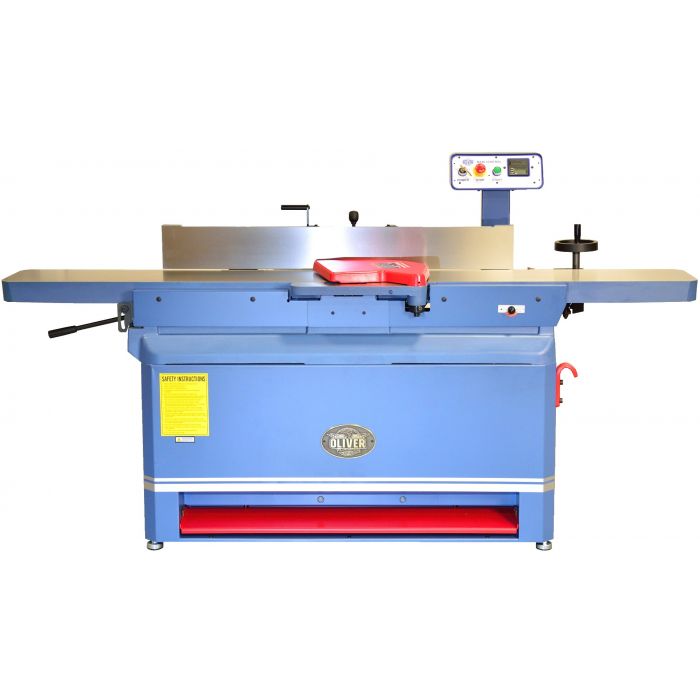

4275C | Oliver | Jointers

  • Power:
    230 1PH 5HP 19.5AMPS
  • Description

    •Extra-long precision ground tables provide a stable work surface                                                                                                                                                          •Parallelogram design provides smooth accurate cuts

    •Massive cast iron frame offers stable table support

    •Fully enclosed cabinet with 6” port for superior dust management

    •Helical cutter head includes premium carbide inserts

    •4-sided cutting inserts are indexed and easy to replace

    •Elevated control panel with key lock and emergency off switch

    •Wixey DRO shows table infeed table movement for precision cuts

    •Pre-drilled bracket for easy (optional) power feeder mounting

    •Foot activated emergency power shutoff.

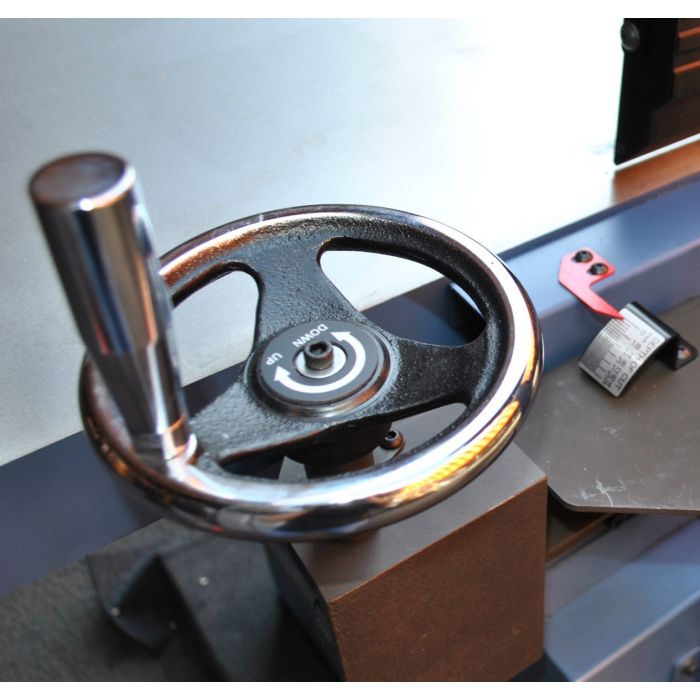

    •Handwheel controlled infeed table allows for quick adjustment and auto-lock during operation

    •Lever controlled outfeed table allows easy adjustment

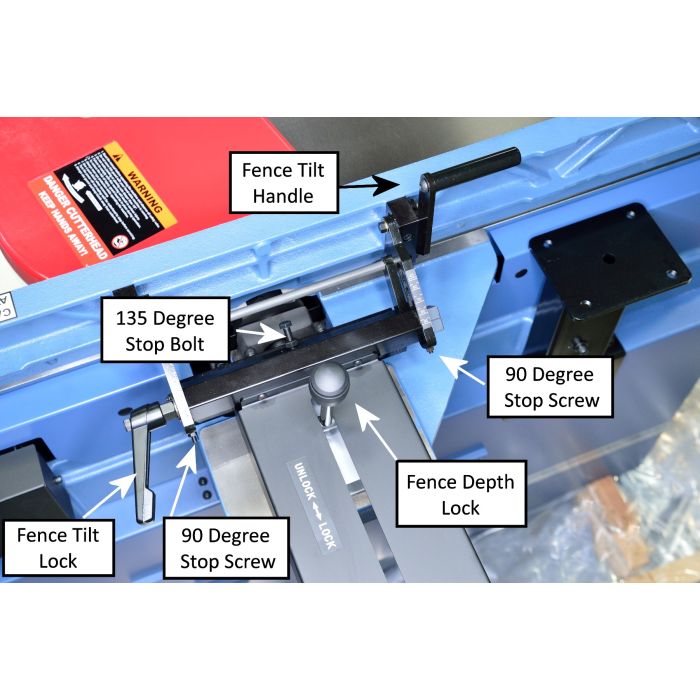

    •Long solid cast iron fence features positive stops at 45° and 90°

    •Fence features flip down L-shaped attachment for use with thin stock

    •Quick slide and lock fence adjustment

    •Easy to read depth of cut gauge

    •Powerful TEFC Baldor motor available in single or three phase

    •Poly V-belt drive efficiently delivers power to the cutter head

  • Specs

    Stock Number|4275.101.4S (5HP, 1Ph)

    Stock No|4275.102.4S (7.5HP, 3Ph)

    Infeed Table Travel|3/4″

    Cutterhead Speed|5,500 RPM

    Number of Knives (helical)|76 Inserts

    Maximum Depth of Cut|1/8″

    Rabbeting Capacity|3/4″

    Dust Port Diameter|6″

    Table Dimensions|16″ x 100″

    Table Height|34-3/4”

    Fence Dimensions|47”L x 6”W

    Fence Tilts|45°

    Positive Stops|90° and 45°

    Motor 1Ph|5HP, 230V (1Ph, 19.5 Amp)

    Motor 3PH|7.5HP, 230V/460V* Prewired 230V (3Ph 16.8/8.4 Amp)

    Overall Dimension100”L x 40”W x 41”H

    Net Weight|1,020

    Gross Weight|1,320 lbs
