J168LH | Cantek | Jointers

  • Power:
    230V 3PH 7.5HP 22AMPS
  • Description

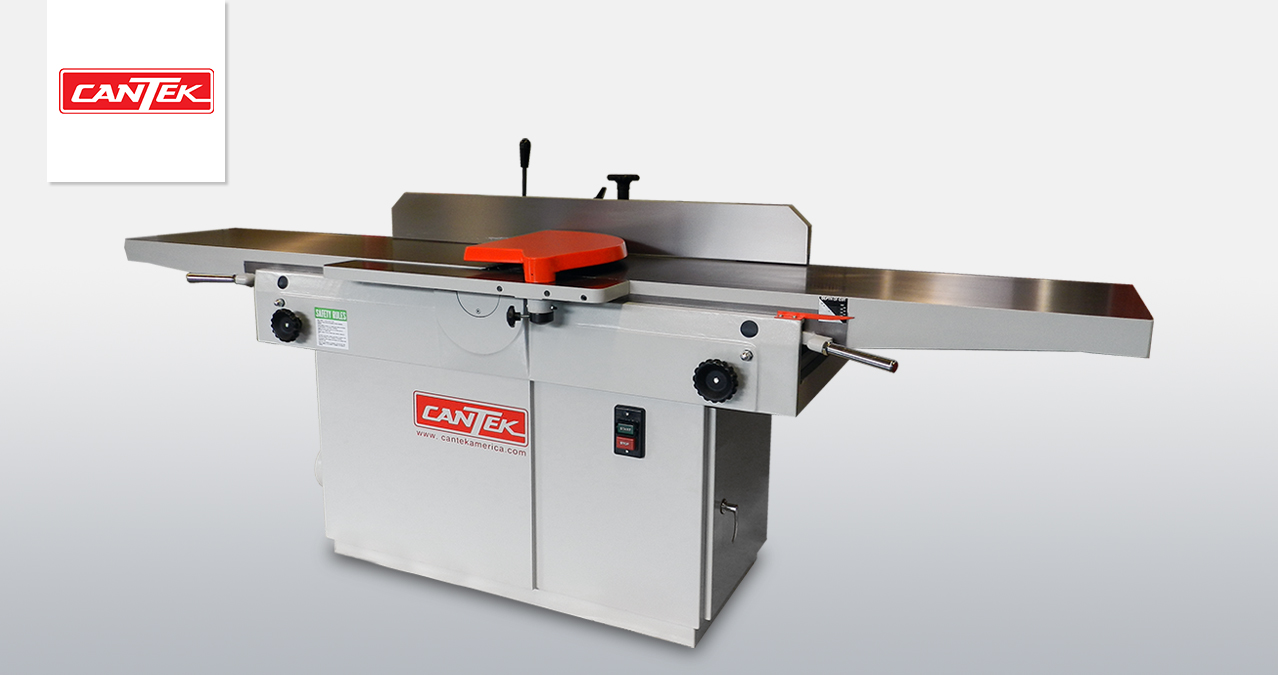

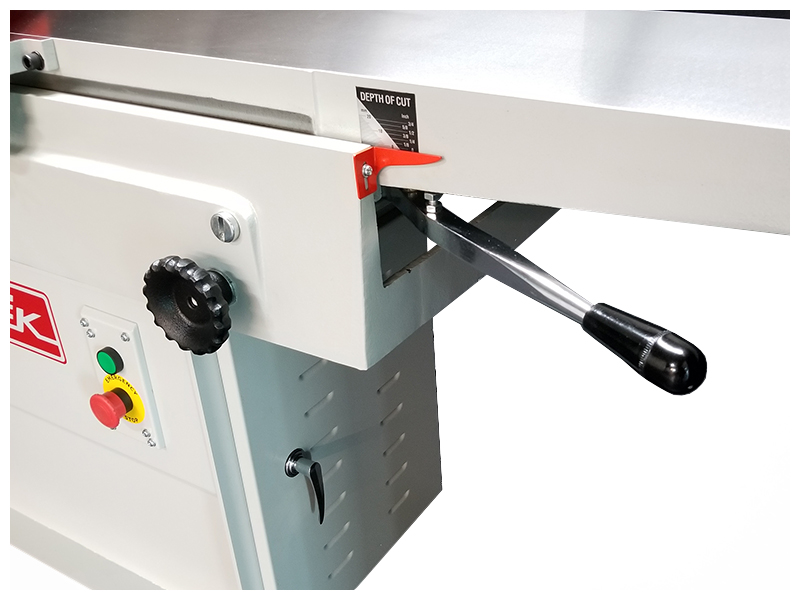

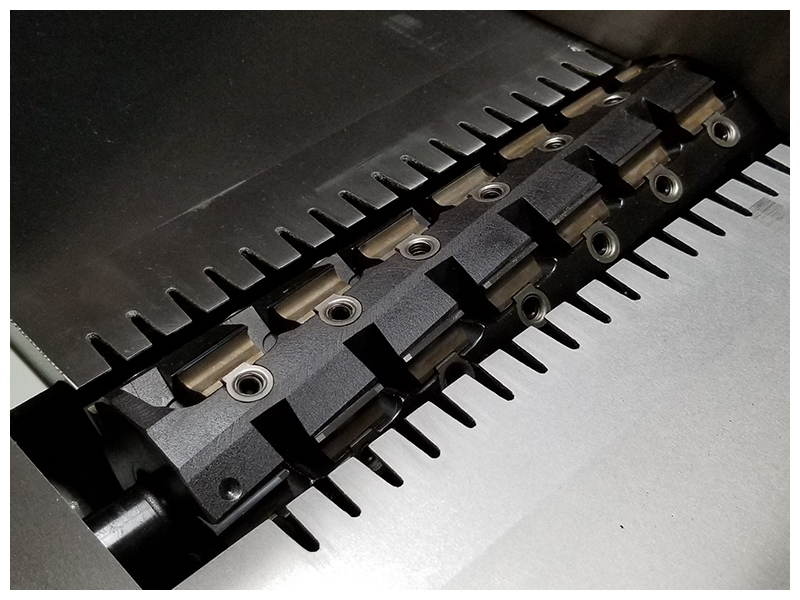

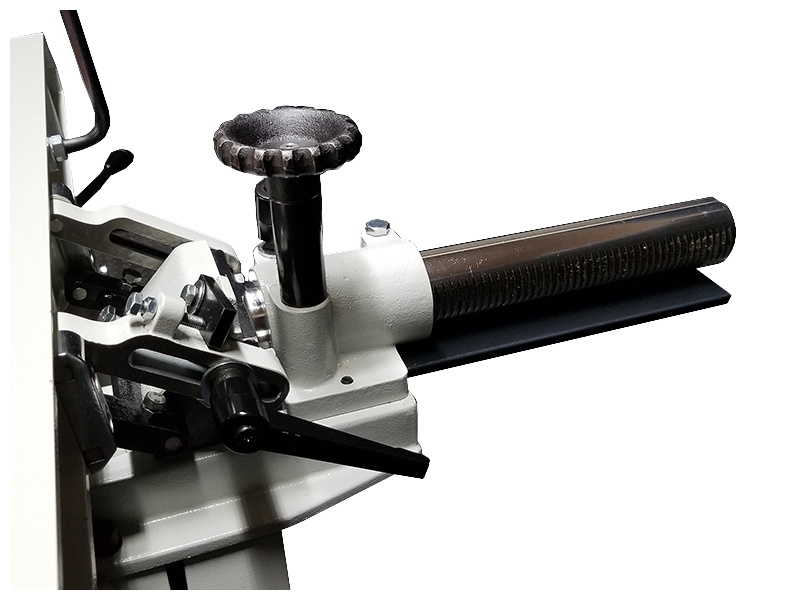

    The Cantek J168LH Heavy Duty 16” Jointer is a truly industrial long bed jointer capable of producing perfectly jointed material used in the production of wood furniture, doors, face frames. and more.  The heavy-duty cast iron infeed & outfeed table and back fence provide superior vibration damping which results in an optimum jointed finish.  The spiral insert cutterhead with its two-sided solid carbide inserts provides optimum stock removal with a superior finish.  The insert knife cutterhead in its spiral pattern runs extremely quiet and the knives have an extremely long life.  The parallelogram table adjustment ensures a minimal gap between the cutterhead resulting in the best quality of cut.

  • Specs

    Motor|7-1/2HP

    Max. cutting width|16″

    Max. depth of cut|3/4″

    Table size|16″ x 96″

    Cutterhead RPM|5000 RPM

    Cutterhead inserts|30x12x1.5mm (2) sided

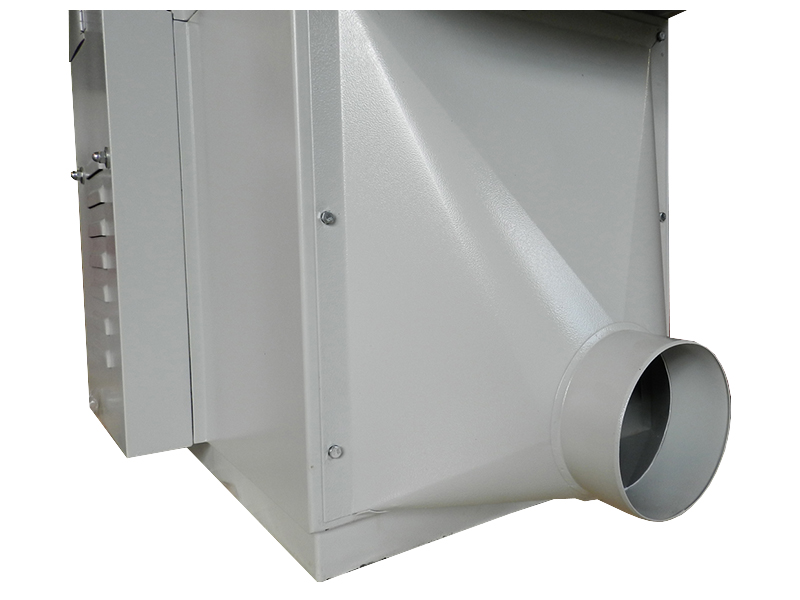

    Dust port|(1) 4″

    Machine dimensions|97” x 40” x 37”

    Machine weight|990 lbs.

    Shipping dimensions|100″ x 29″ x 39″

    Shipping weight|1210 lbs.

    Electrical requirements|230/3/60 = 22 amps
  • Download

Videos of 16″ Jointer

Cantek J127LH & J168LH Jointers
