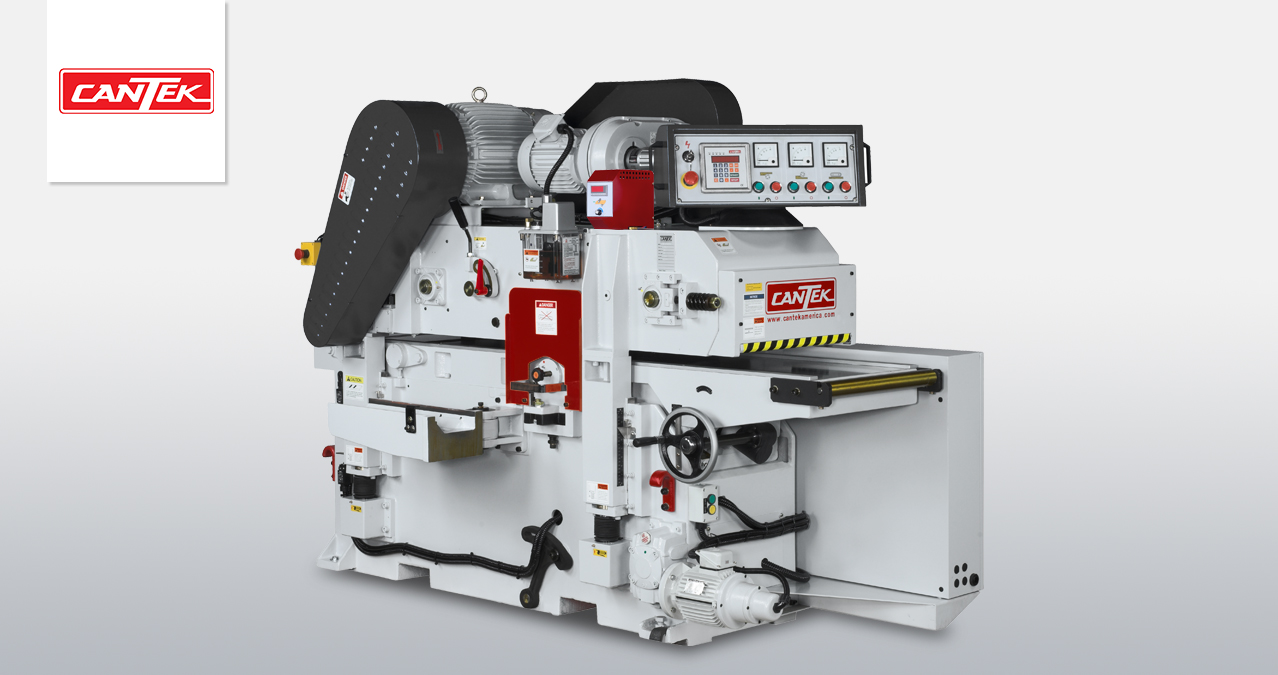

GT400BRD | Cantek | Planers

  • Power:
    230/460V 3PH 27.5HP 66/37AMPS
  • Description

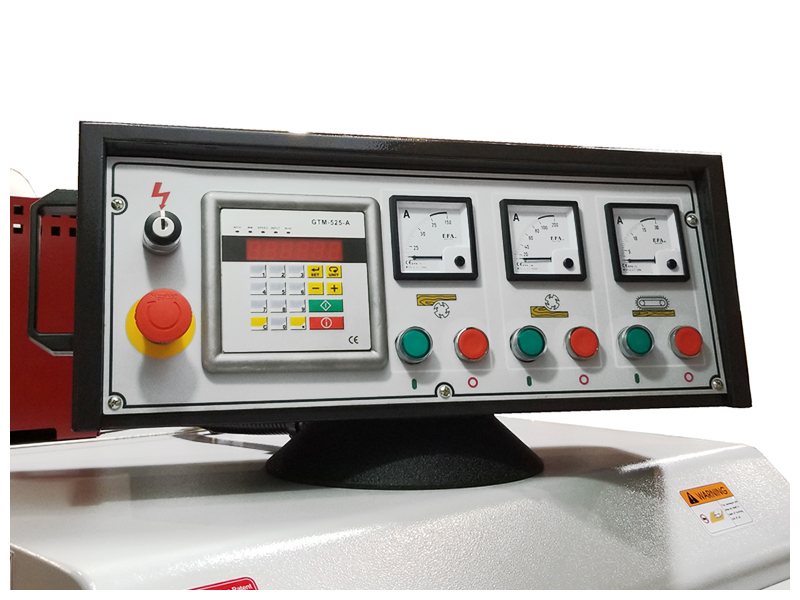

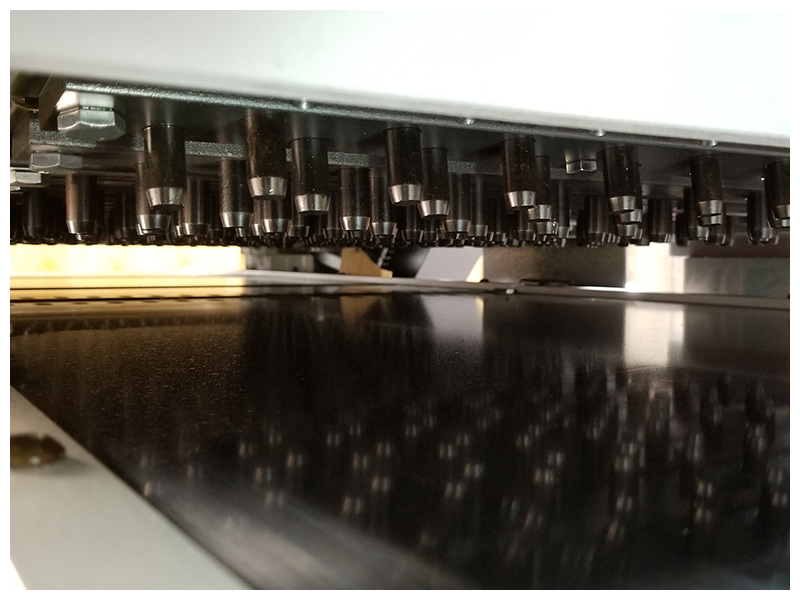

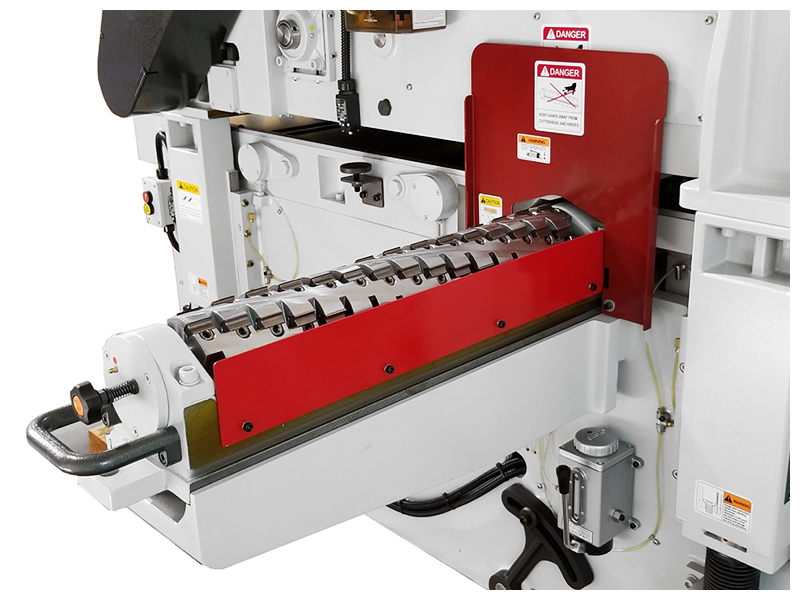

    The Cantek GT400BRD 16″ Double Surface Planer has a robust cast-iron body for industrial planing day in and day out.  The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal.  The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.

  • Specs

    Maximum working width 16″

    Maximum working thickness 6.7″

    Minimum workpiece length 10″

    Minimum working thickness 0.315″

    Bottom jointing head motor 10 HP

    Top planing head motor 15 HP

    Feed motor 2 HP

    Table elevation motor ½ HP

    Cutterhead diameter 4″

    Knife information 30mmx12mmx1.5mm

    60 knives / head

    Cutterhead speed 5000 RPM

    Feed speed (variable) 23~65 FPM

    Dust collection 2 @ 5″ diameter

    Table size 19″ x 86″

    Machine dimensions (LxWxH) 86.6″ x 35.43″ x 66.93″

    Net weight 4180 Lbs.

    Packaging dimensions 90.5″ x 37.4″ x 72.83″

    Gross weight 4620 Lbs.

    Electrical Information 460/3/60 = 33 amps | 230/3/60 = 66 amps
