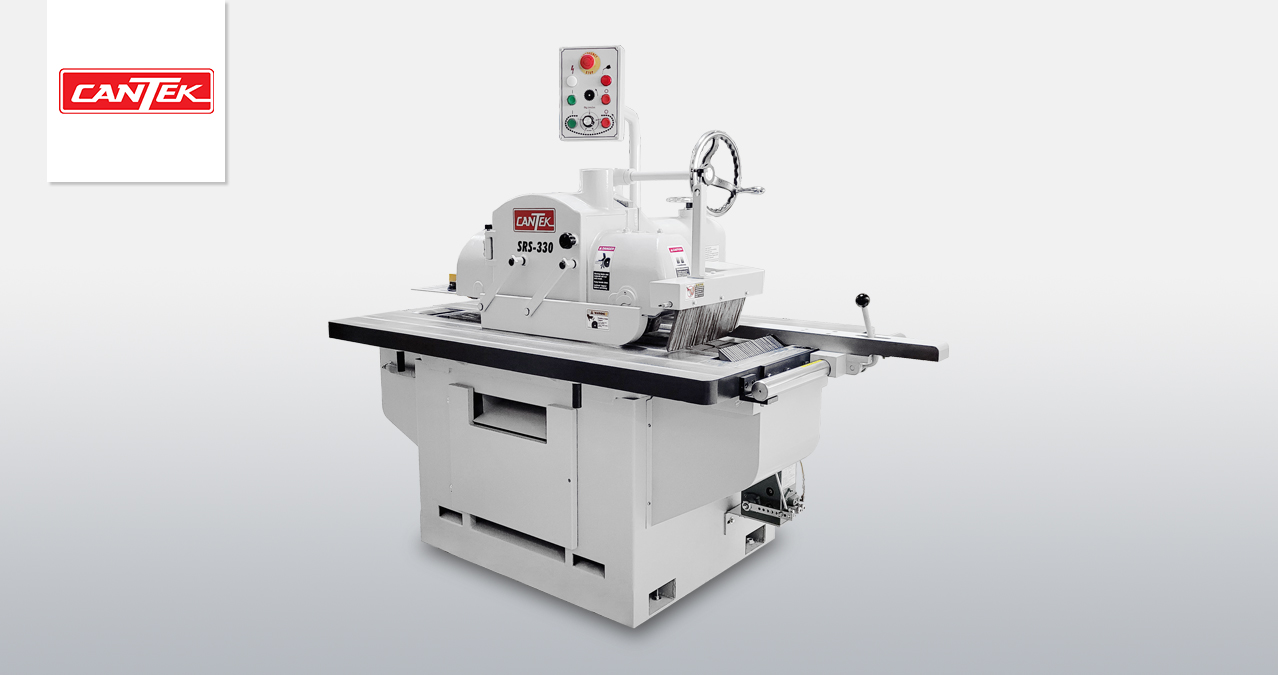

SRS330 | Cantek | Ripsaws

  • Power:
    460V 3PH 22HP 30.4AMPS
  • Description

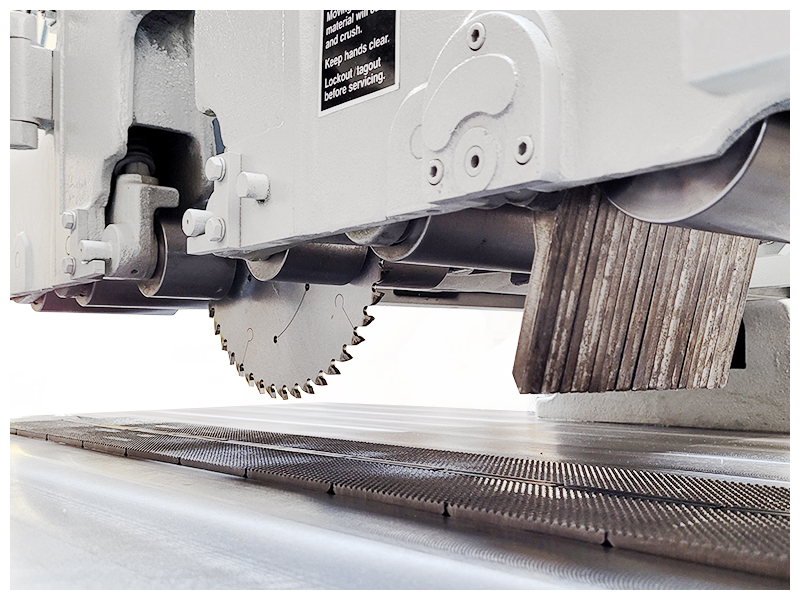

    Precision glue joint ripsaw built for power and speed. The Cantek SRS330 Straight Line Ripsaw is a single-blade ripsaw is geared towards the shop looking to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw.  With its precision cast iron chain and track assembly, and extended pressure section, the SRS330 can produce a glue joint finish ready for panel glue-up right out of the saw.

  • Specs

    Max. workpiece thickness: 10″ blade|2.36″

    Max. workpiece thickness: 12″ blade|3.35″

    Max. workpiece thickness: 13″ blade|3.94″

    Max. workpiece thickness: 14″ blade|4.33″

    Minimum work piece length|8″

    Distance between saw and column|18.1″

    Saw arbor diameter|1″

    Saw blade diameter|10″ – 14″

    Saw arbor speed|4300 RPM

    Useable chain length|47″

    Glue line guarantee|13′ (+/- 0.0098″)

    Feed speeds variable|33~130 FPM

    Arbor motor|20 HP

    Feed motor|2 HP

    Dust collection outlet|4″

    Table size|36.6″ x 64.6″

    Table height|31-7/8″

    Machine weight|3190 lbs

    Machine dimensions|78 ¾” x 44″ x 64″

    Shipping weight|3630 lbs

    Shipping dimensions|76 ¾” x 53″ x 67 ¾”

    Electrical requirements|230/3/60 = 60.8 Full Load Amps|460/3/60 = 30.4 Full Load Amps
