PCS14 | Cantek | Cutoff Saws

  • Power:
    230/460V 3PH 5HP 15.2/7.6AMPS
  • Description

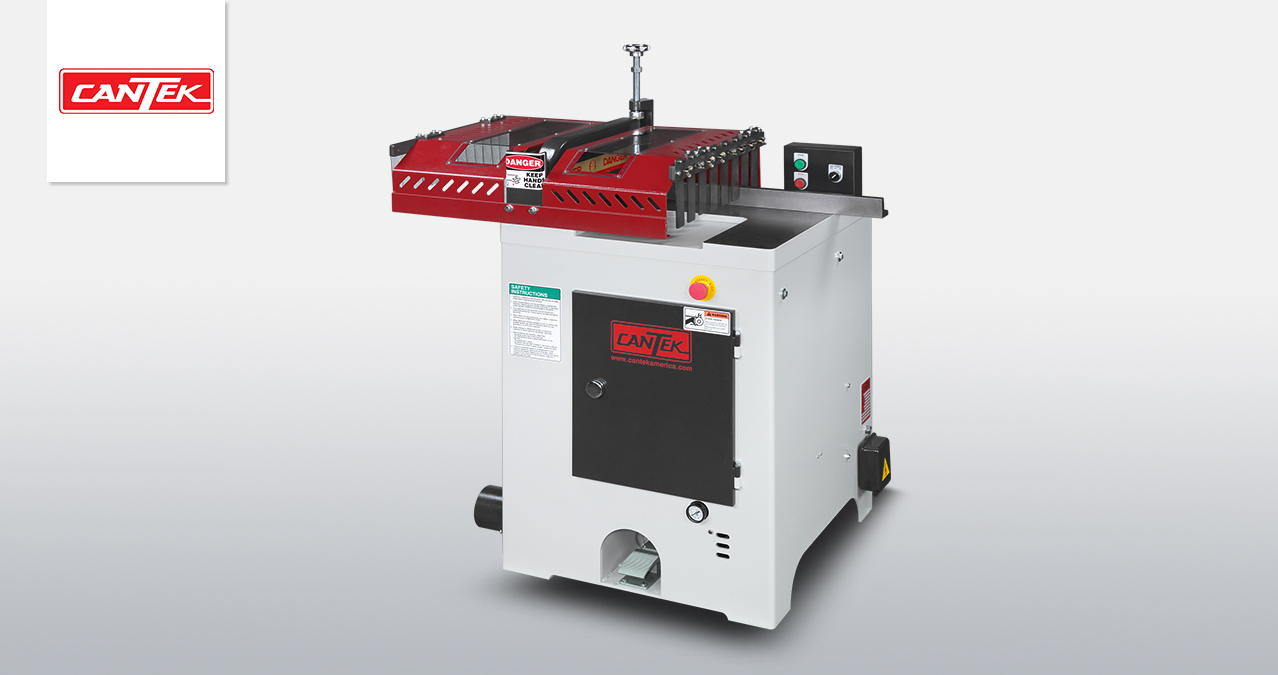

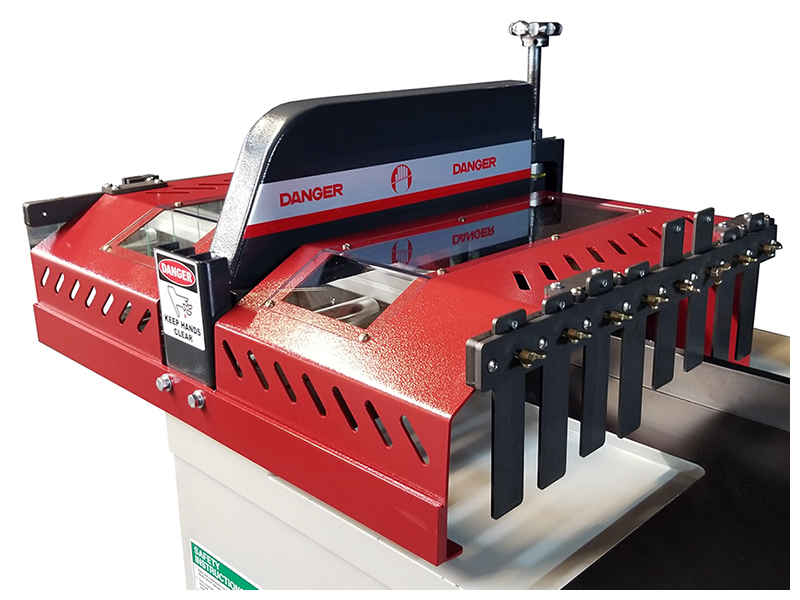

    The Cantek PCS14 14″ pneumatic cut-off saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 5HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and security bolt on the saw access door. Available in either left hand or right hand operation depending on your ideal production flow.

  • Specs

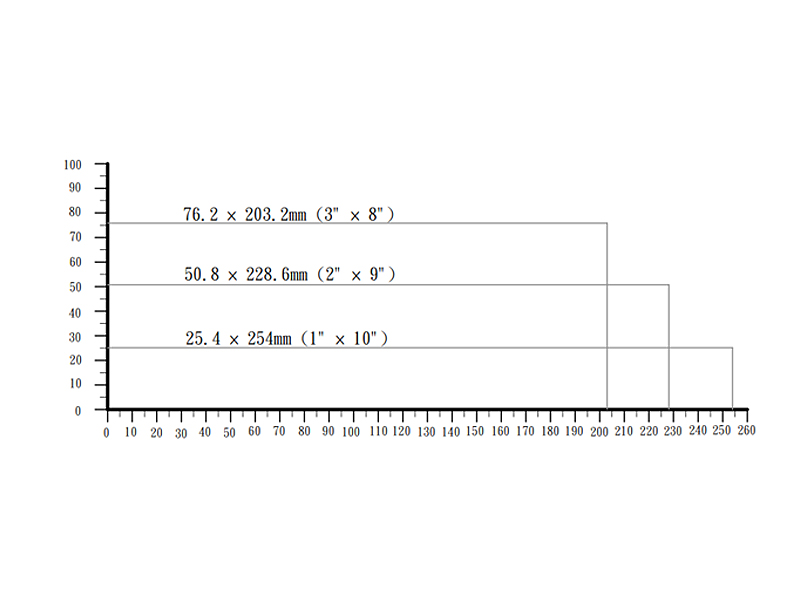

    Cutting capacity (thickness x width)|1″ x 10″, 2″ x 9″, 3″ x 8″

    Cycle speed|95 strokes/min

    Cycle operation|Air

    Saw blade size|14″

    Saw arbor diameter|1″

    Saw blade speed|4100 RPM

    Dust exhaust diameter|Ø4″

    Air|16.9 CFM / 70-85 PSI

    Motor|5 HP

    Table size|24.8” x 23.2”

    Net weight|530 lbs.

    Shipping weight|642 lbs.

    Machine dimensions (LxWxH)|36” x 25” x 48”

    Packing dimensions (LxWxH)|30” x 30” x 51.2”

    Power requirements|230/1/60 = 28 amps | 230/3/60 = 15.2 amps|460/3/60 = 7.6 amps
