Description

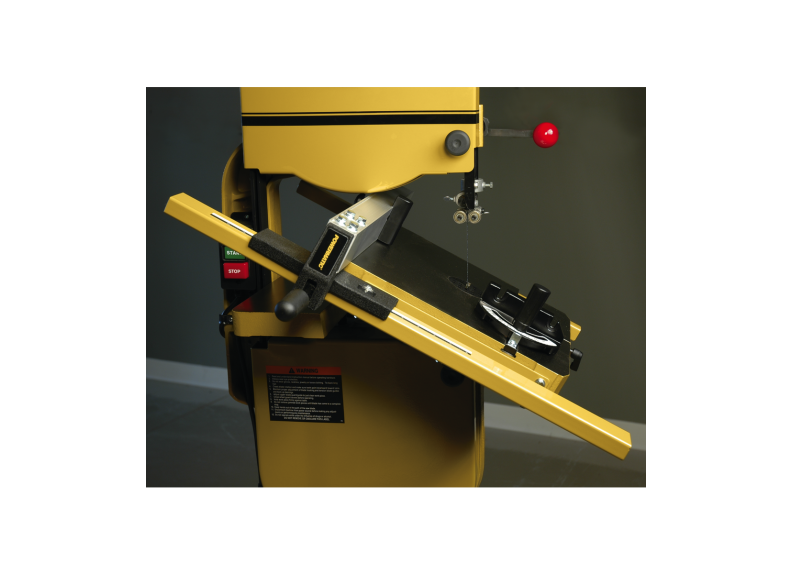

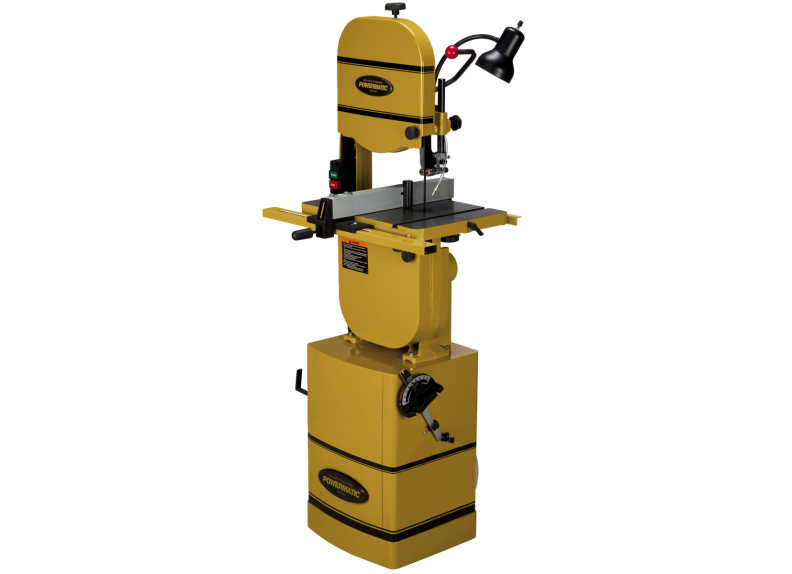

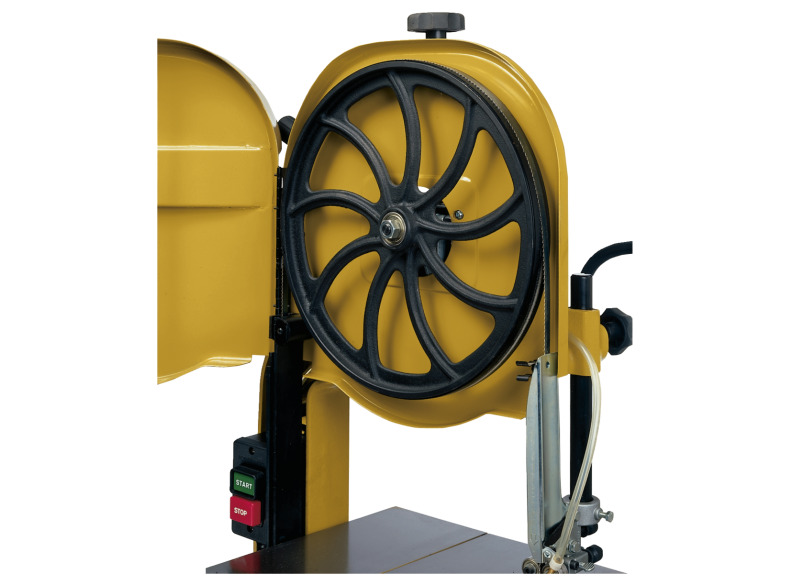

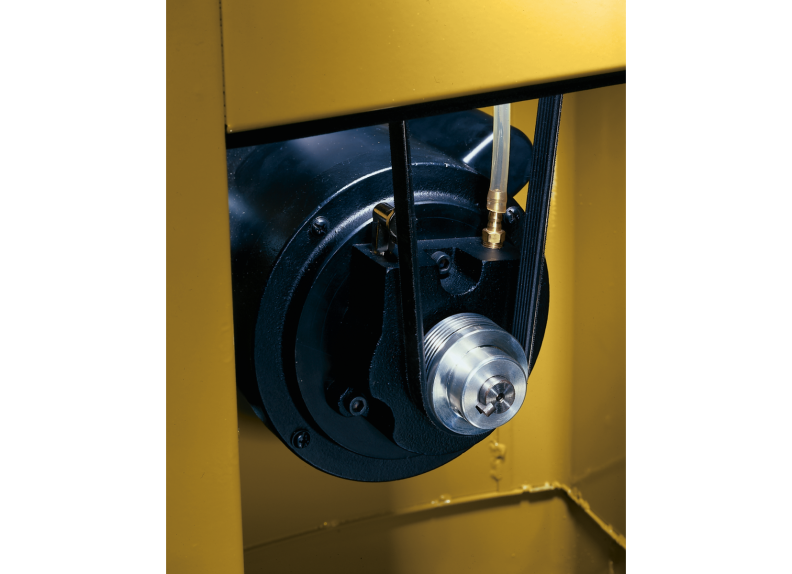

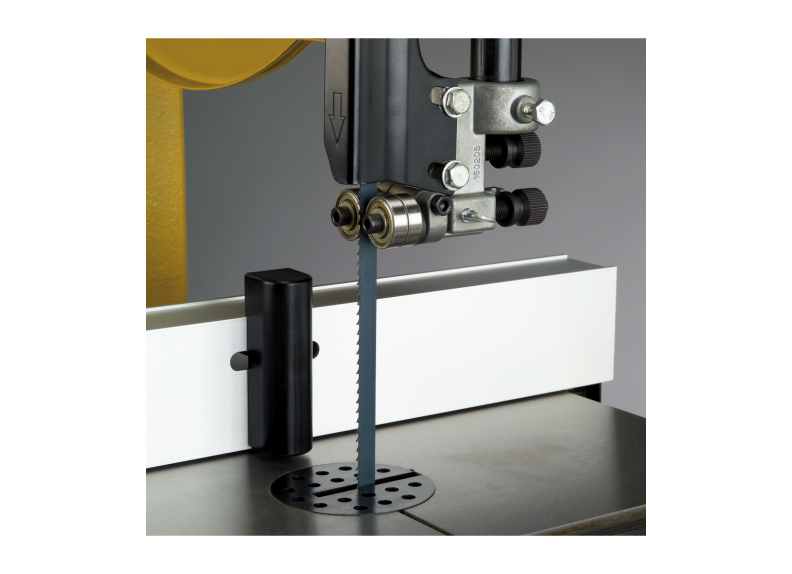

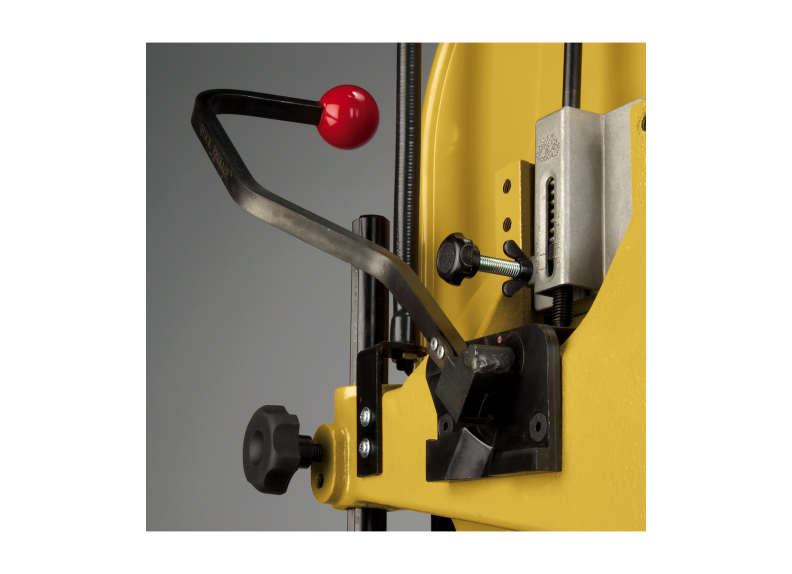

Introducing the PWBS-14CS Bandsaw. It has an extra large, two-piece cast iron table. It consists of a 15″ x 15″ tilting section and a fixed 15″ x 5″ extension for a total working surface area of 15″ x 20″. A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter™ quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6″ under guide capacity with 13-1/2″ frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
-
Specs
Stock Number|PM9-1791216K
Band Saw Size/Wheel Diameter (In.)|14
Blade Length (In.)|93-1/2
Blade Speed (SFPM)|3000
Dust Collection Minimum CFM Required (CFM)|600
Dust Port Outside Diameter (In.)|4
Minimum Saw Blade Width (In.)|1/8
Motor Power (HP)|1.5
Motor Voltage (V.)|115/230
Prewired Voltage (V.)|115
Prop 65 |None
Recommended Circuit Size (Amps.)|30/20
Table Height from Floor (In.)|44
Table Tilt (Deg.)|45 Right / 10 Left -
