OES-512D | Cantek | Sanders

  • Power:
    230/460V 3PH 10HP 28/14AMPS
  • Description

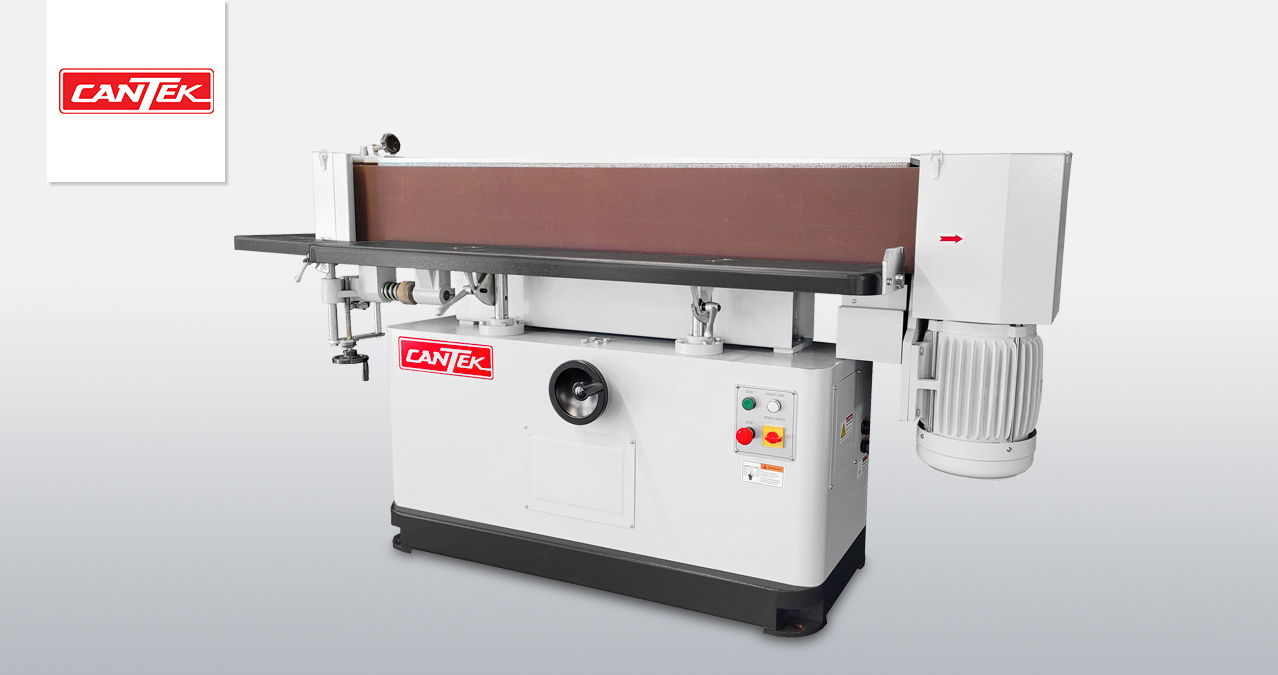

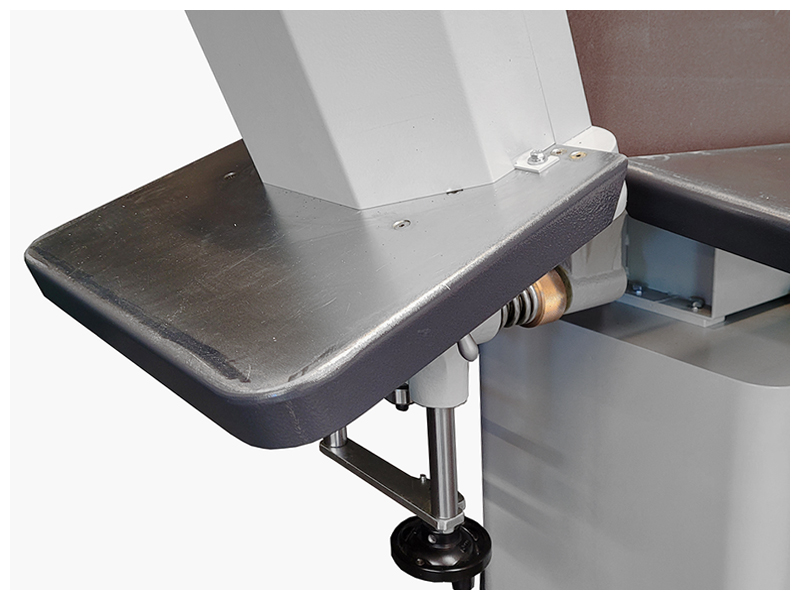

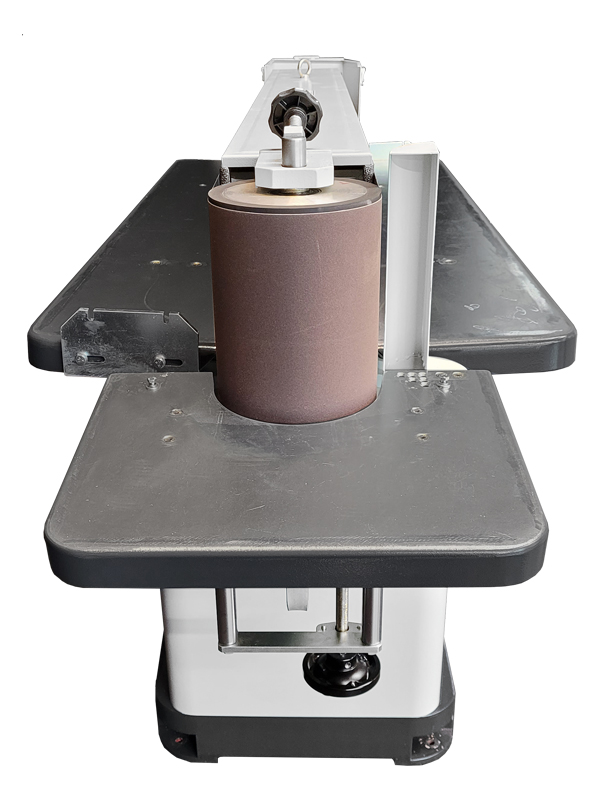

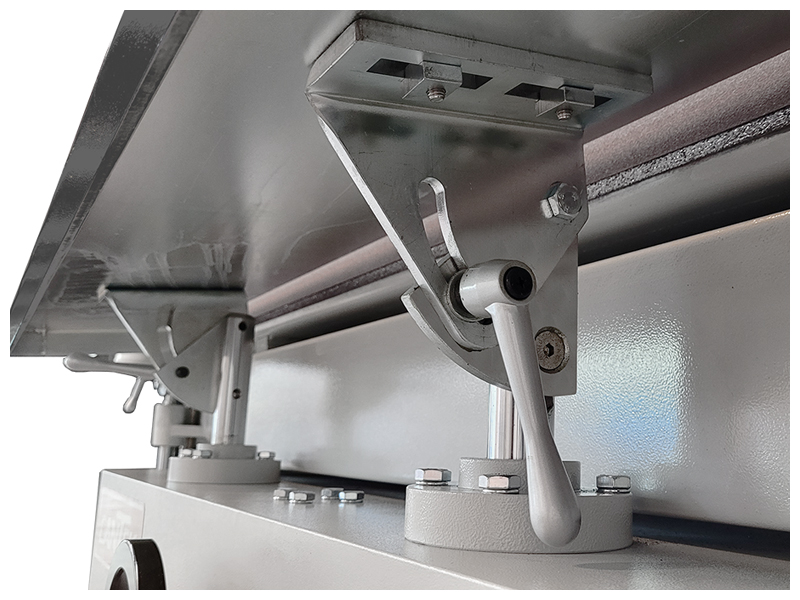

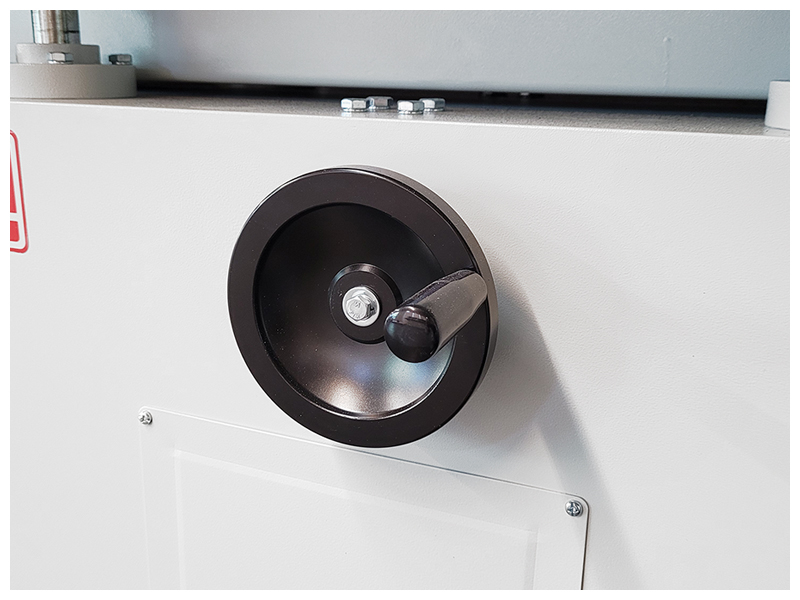

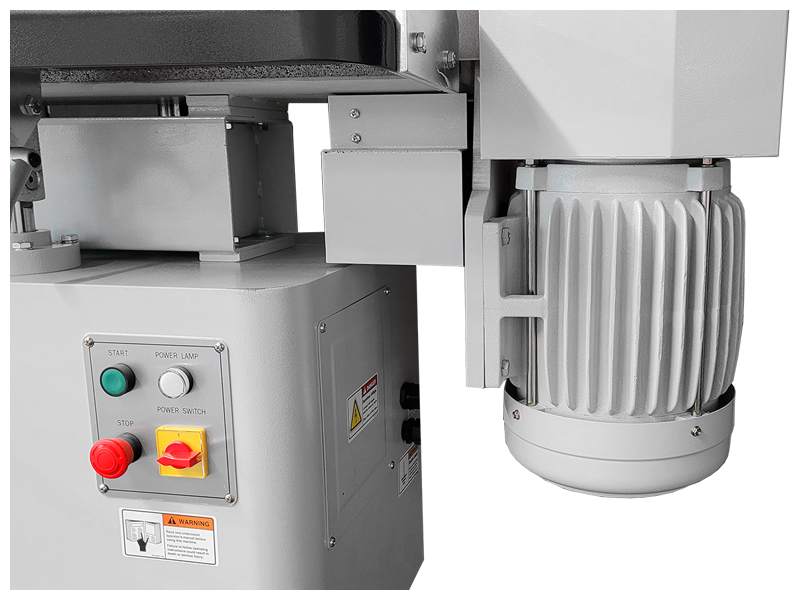

    The Cantek OES512D Heavy Duty Oscillating Edge Sander is the ideal edge sander for demanding applications for production use.  Equipped with a 12” high oscillating sanding belt, it is ideal for sanding drawer boxes, doors, furniture components and more. The OES512D is also equipped with dual front and rear tables which are adjustable up & down and can be tilted to 45 degrees, allowing for a wide range of applications and full utilization of the sanding belt. The dual tables also allow for two operators to be working on the machine at the same time made possible by the powerful 10 HP sanding motor.  The adjustable and tiltable end table allows for sanding of curved components on the idle pulley.  The belt oscillates up and down which helps in keeping it cool while also producing an optimum sanded finish.

  • Specs

    Sanding motor|10 HP

    Oscillating stroke|0.472″

    Sanding belt size|12″ x 166″

    Sanding belt speed|970 MPM

    Worktable dimension: front|10.43″ x 60.9″

    Worktable dimension: rear|10.43″ x 60.9″

    Worktable dimension: side|13.8″ x 17.7″

    Front table tilt|45°

    Side table tilt|45°

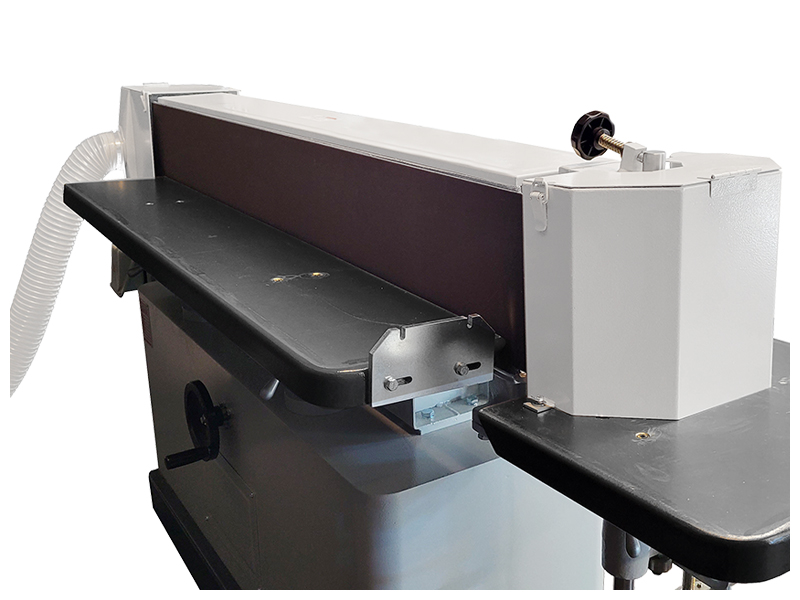

    Dust port|(2) 4″

    Machine measurement|90.55″ x 30.7″ x 51″

    Packing measurement|94.5″ x 34.6″ x 59″

    Machine weight|1155 lbs.

    Shipping weight|1430 lbs.

    Electrical requirements|230/3/60 = 28 amps
  • Download

Videos of 12″Oscillating Edge Sander

Cantek OES Series Heavy Duty Oscillating Edge Sanders
