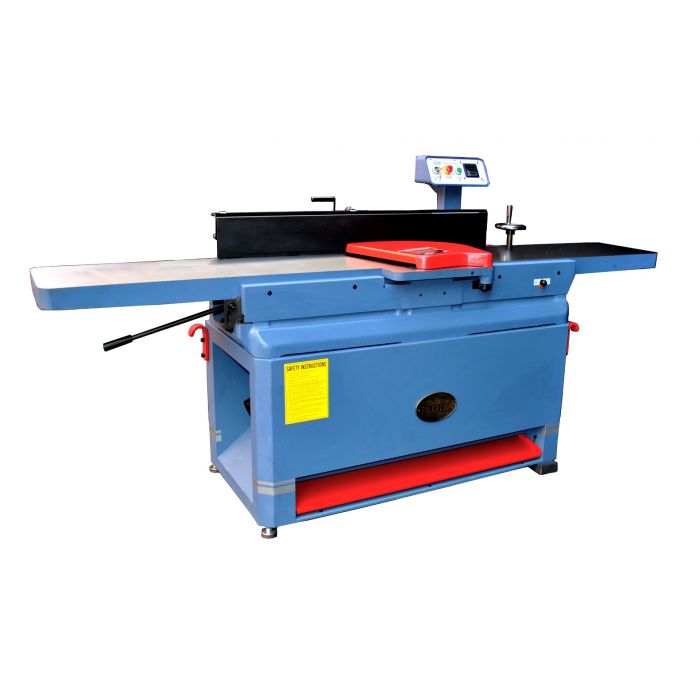

4265 | Oliver | Jointers

  • Power:
    230V 3PH 5HP 11.8/5.9AMPS
  • Description

    •Extra-long precision ground tables provide a stable work surface. •Parallelogram design provides smooth accurate cuts.

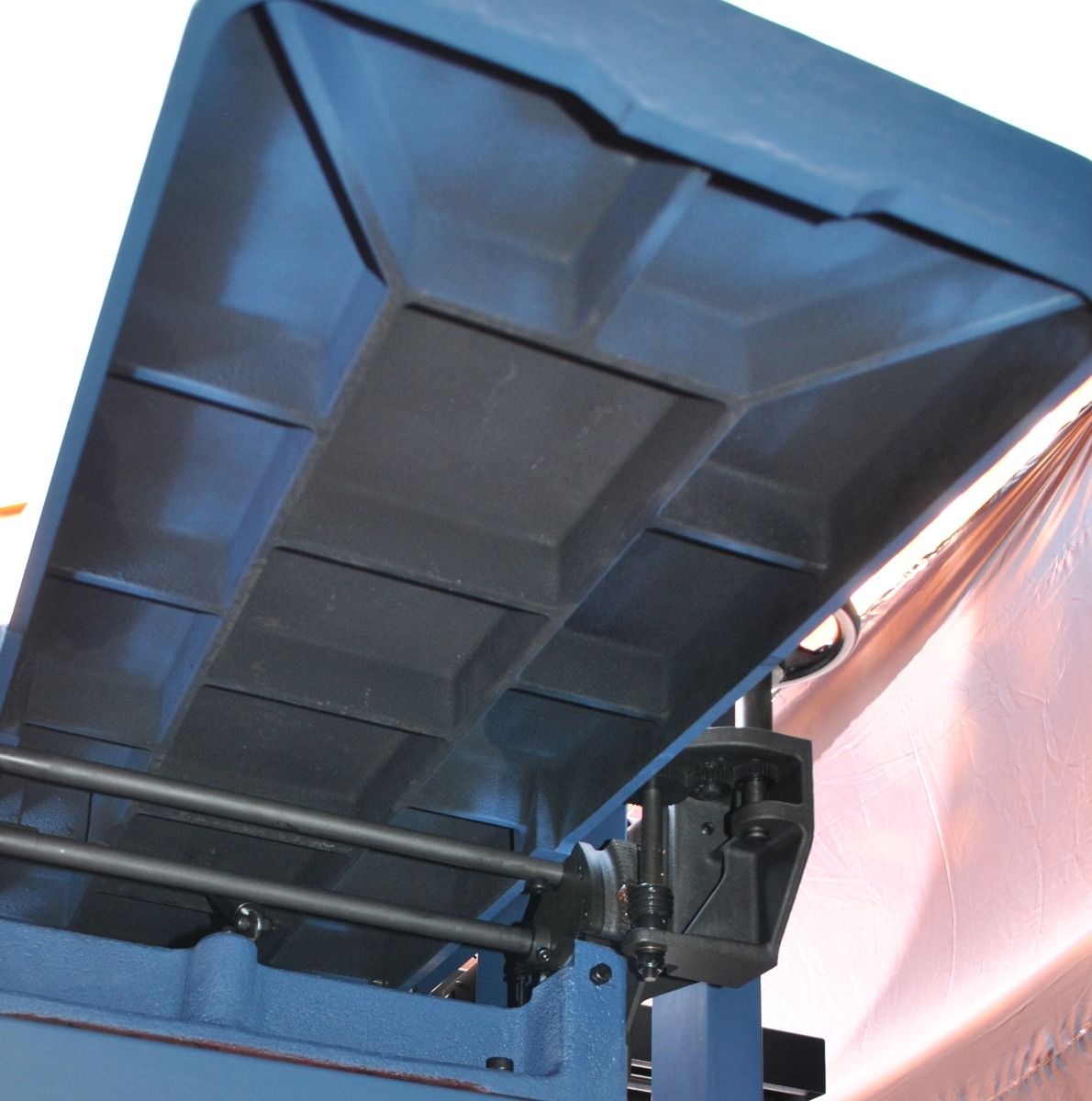

    •Massive cast iron frame offers stable table support.

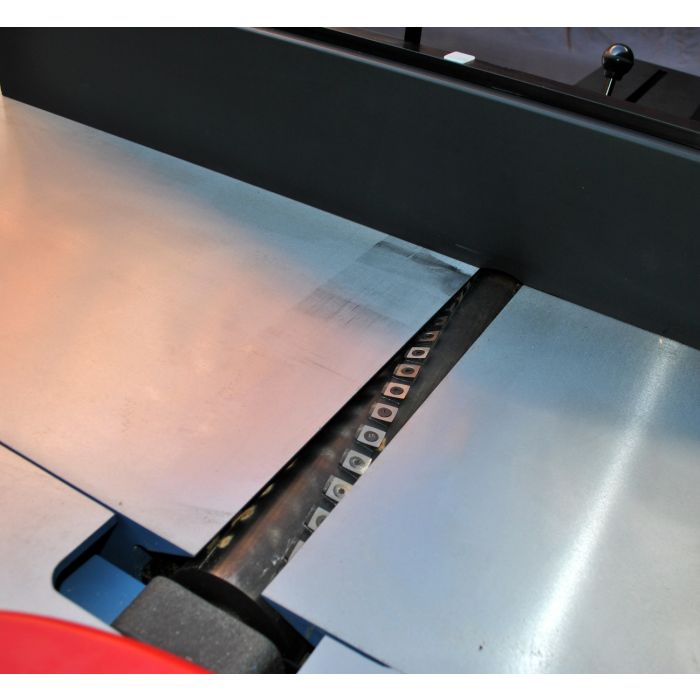

    •Helical cutter head includes premium carbide inserts.

    •4-sided cutting inserts are indexed and easy to replace.

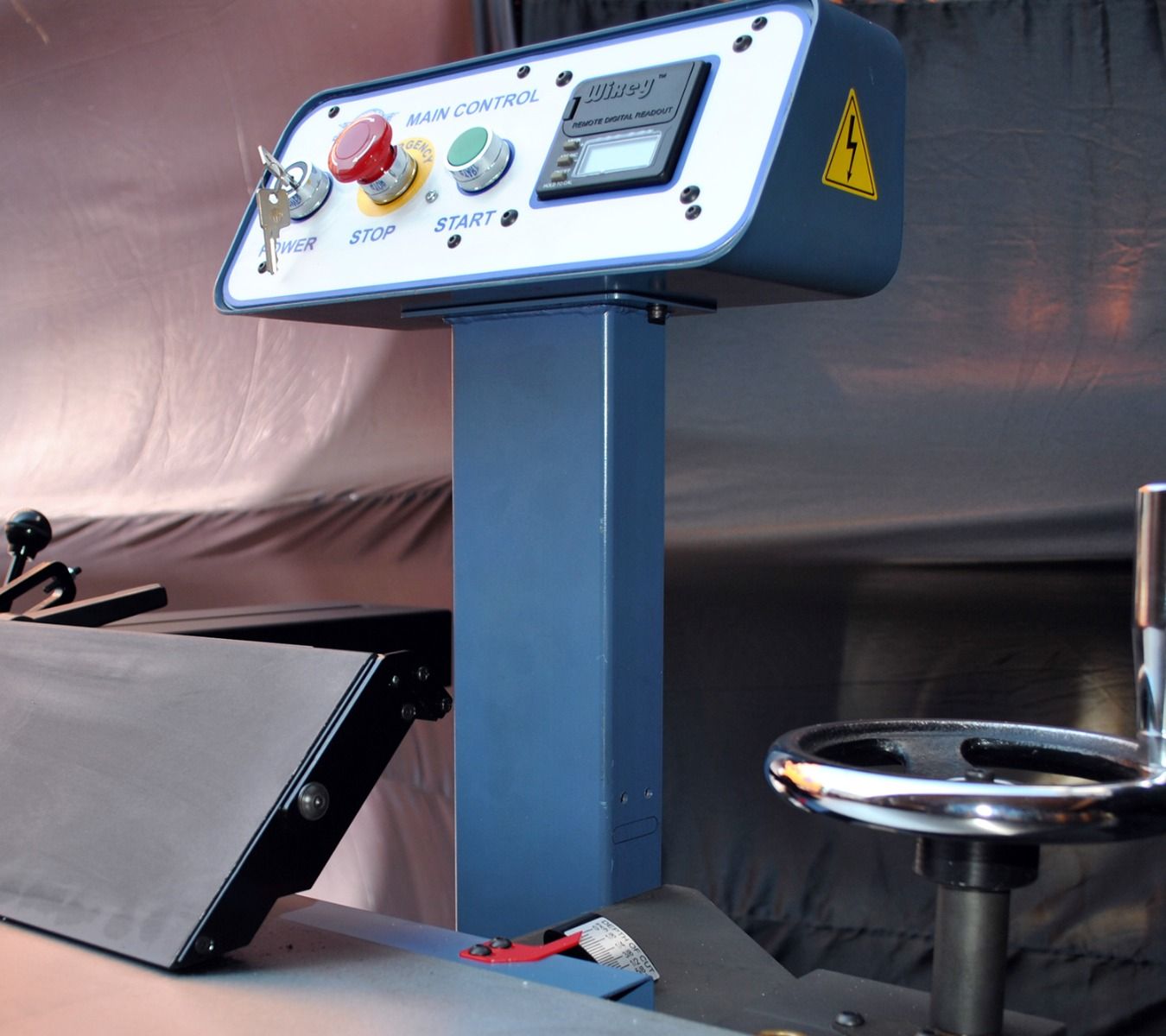

    •Wixey DRO shows table infeed table movement for precision cuts.

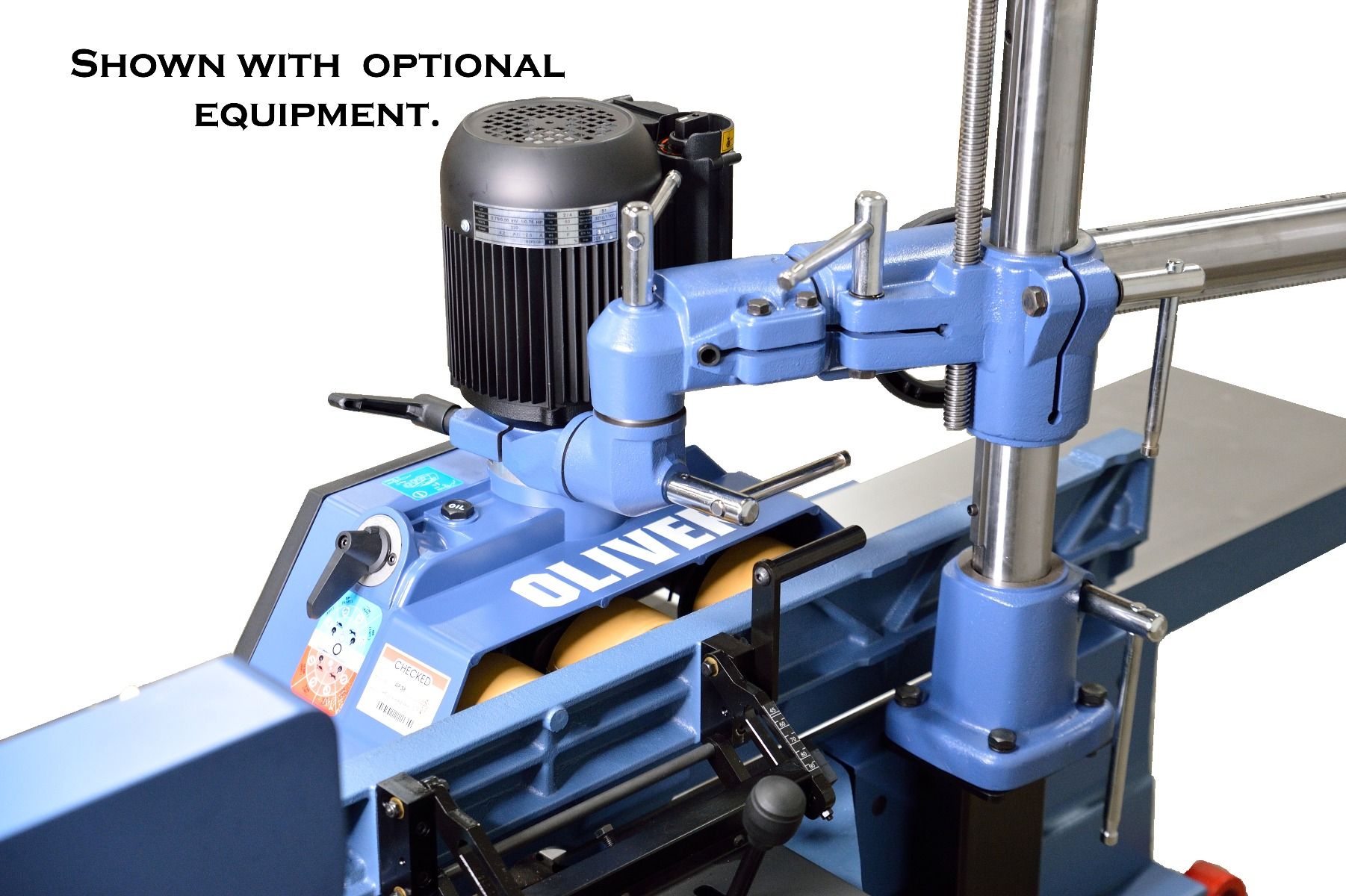

    •Pre-drilled bracket for easy (optional) powerfeed mounting.

    •Foot activated emergency power shutoff.

    •Lever controlled outfeed table allows easy adjustment.

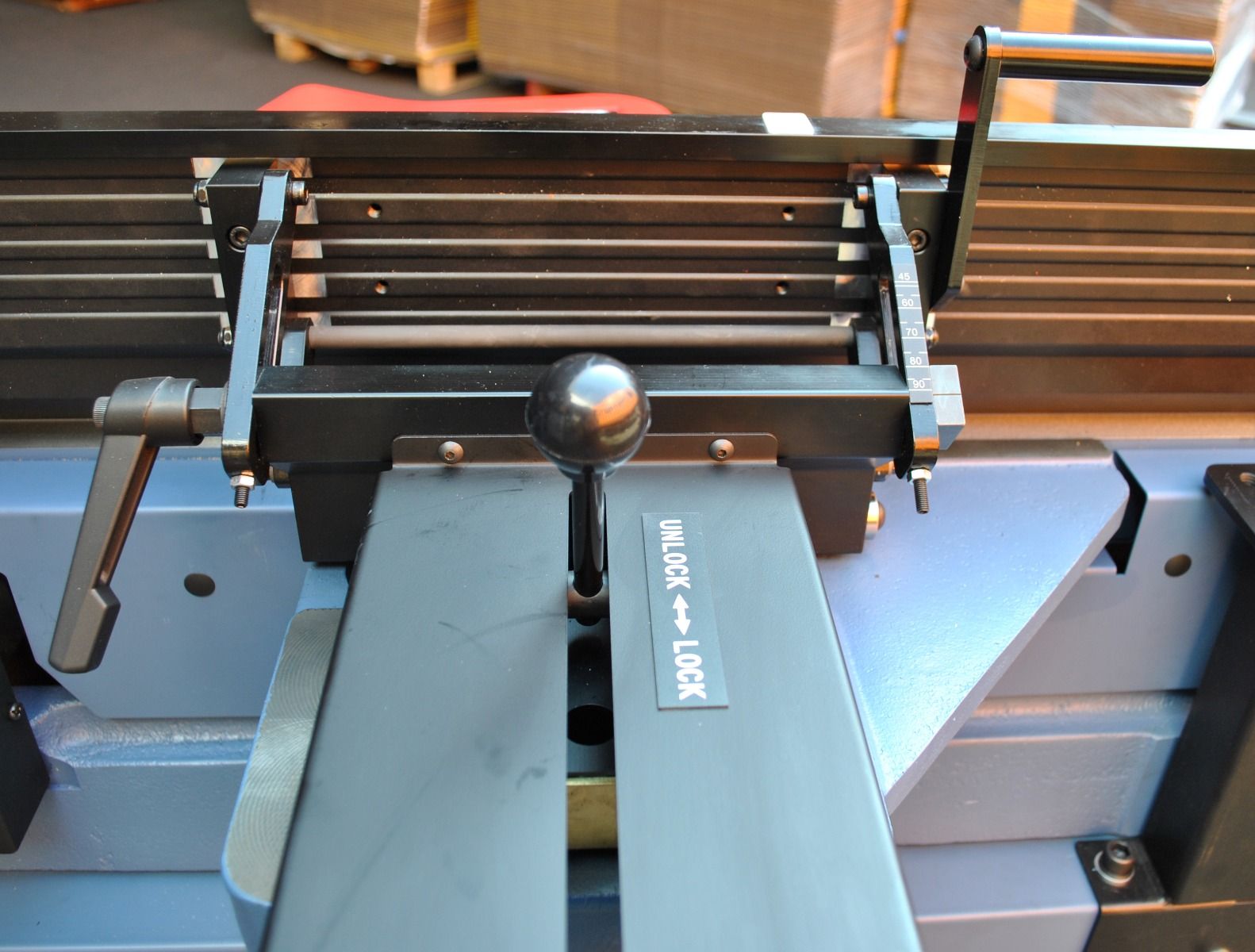

    •Long European style aluminum extruded fence features positive stops at 45° and 90°.

    •Fence features flip down L-shaped attachment for use with thin stock.

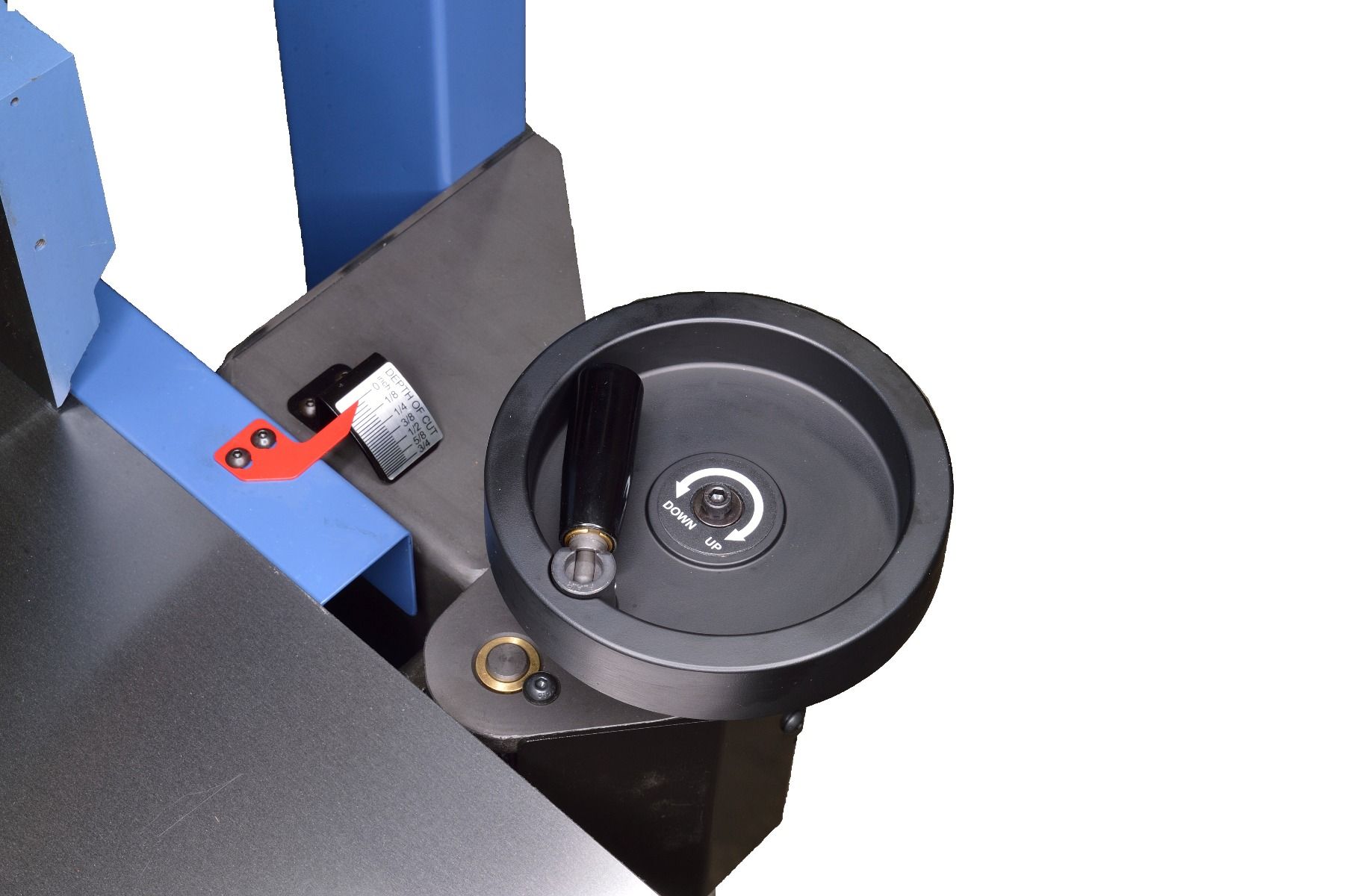

    •Easy to read depth of cut gauge.

    •Powerful TEFC Baldor motor available in single or three phase.

    •Poly V-belt drive efficiently delivers power to the cutter head.

  • Specs

    Stock Number|4265.101.4S (3HP, 1Ph)
    Stock No|4265.102.4S (5HP, 3Ph)
    Infeed Table Travel|3/4″
    Cutterhead Speed|5,500 (RPM)
    Number of Knives (helical)|56 Inserts
    Maximum Depth of Cut |1/8″
    Rabbeting Capacity|3/4″

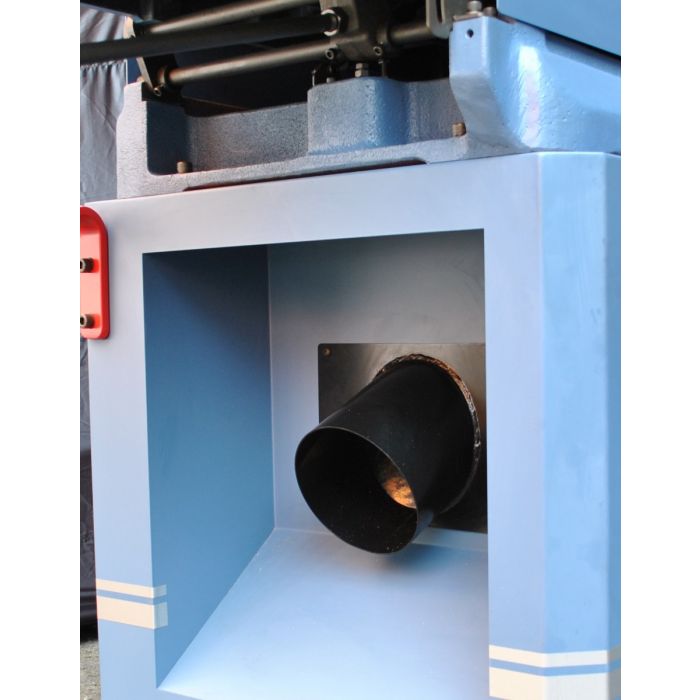

    Dust Port Diameter|6″
    Table Dimensions|88”L x 12”W
    Table Height|34-3/4”
    Fence Dimensions|47”L x 6”W
    Fence Tilts|45°
    Positive Stops|90° and 45°
    Motor 1Ph|4265.101.4S 3HP, 230V (1Ph, 14.5 Amp)
    Motor 3Ph|4265.102.4S 5HP, 230V (3Ph, 11.8/5.9 Amp)
    Overall Dimension|88”L x 29”W x 55”H
    Net Weight|814 lbs.
    Gross Weight|980 lbs.
