Description

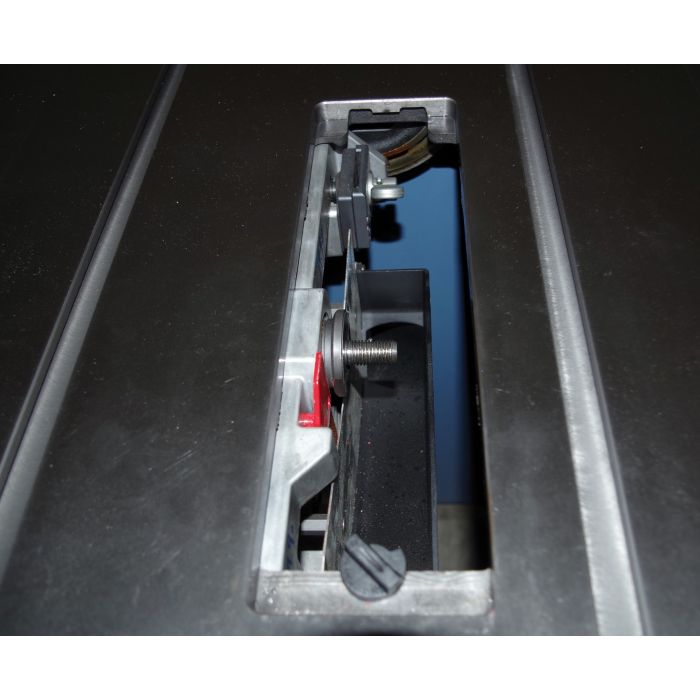

•Standard and dado table inserts standard.
•Cabinet mounted blade trunnion.
•Spindle lock for easy blade changes.
•Built in storage for fence, blade guard, miter gauge, and riving knife.
•Saw blade included.
•Poly V-belt for long life and smooth operation.

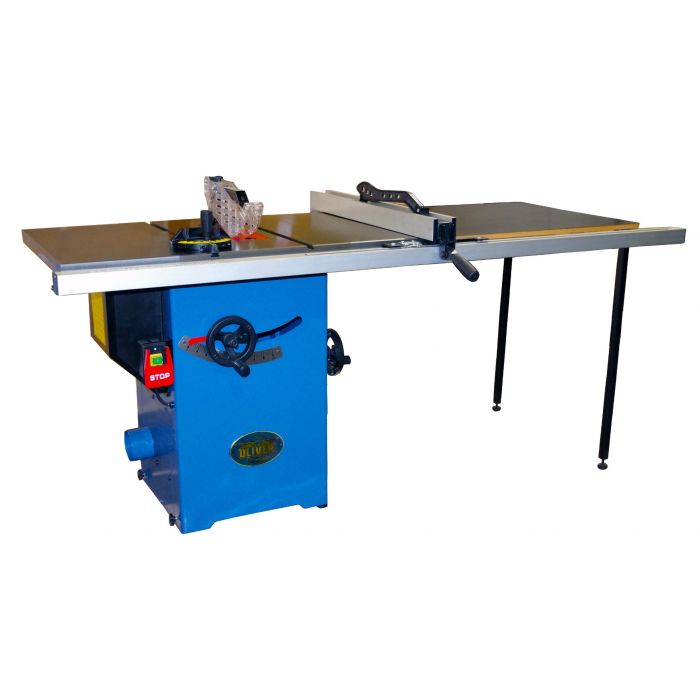

•Extension table and legs included with 52” model.

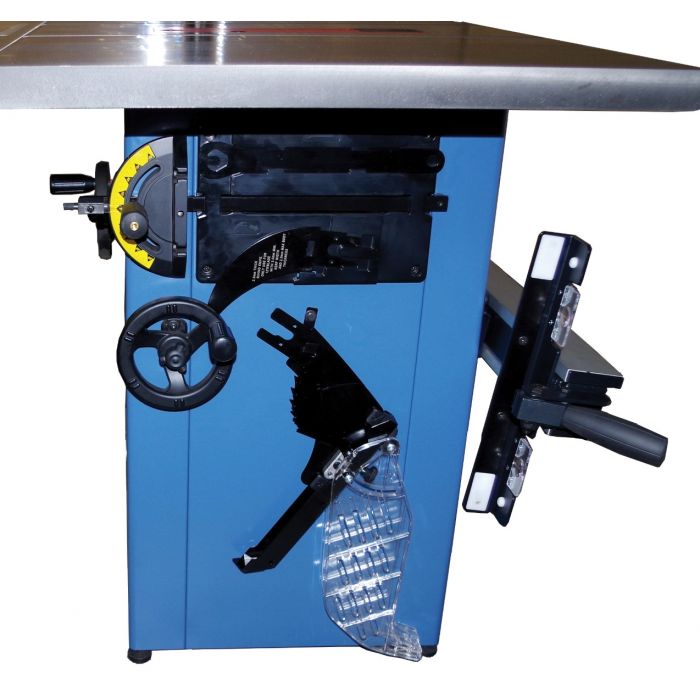

•Quick mount and release blade guard.
•Riving knife included.
•Built in wheels with locks for mobility.

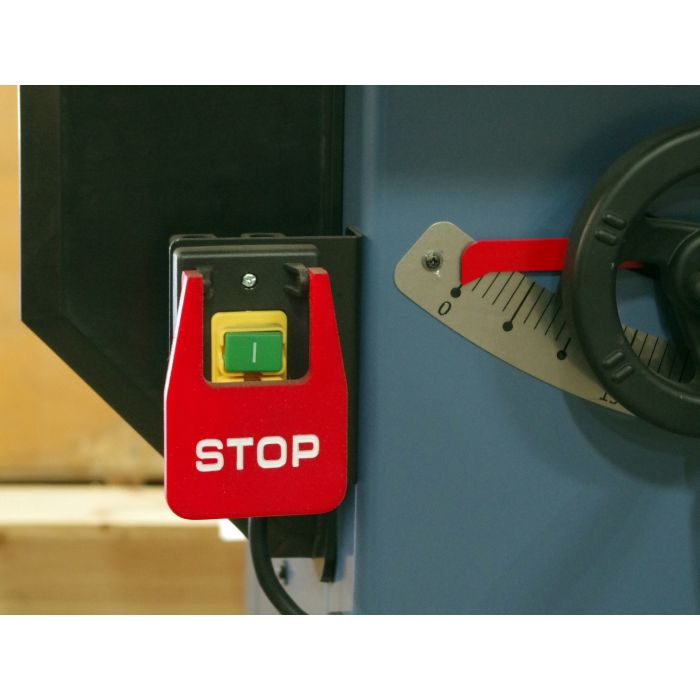

•Industrial switch with large OFF paddle.
•Dust shroud and hose for efficient dust management.

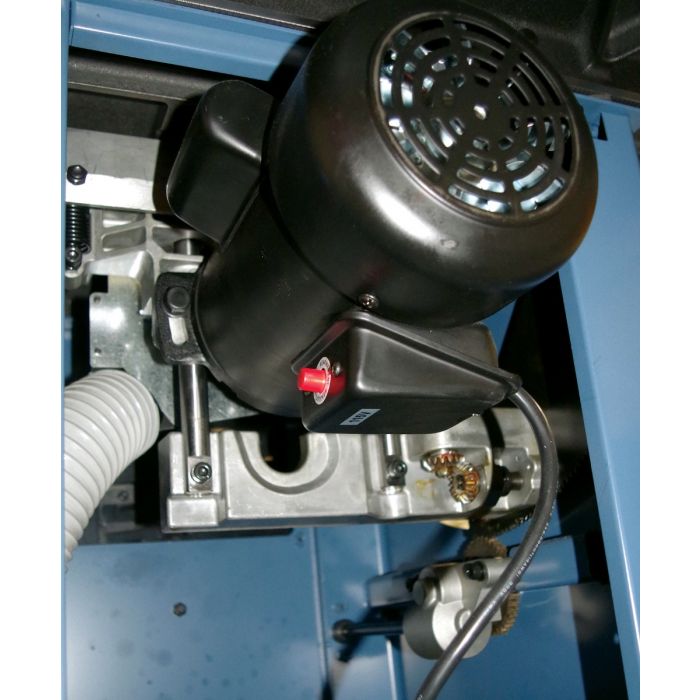

•Motor includes thermo overload reset switch for added protection. -
Specs
Blade Diameter|10″
Arbor Diameter|5/8″
Blade Tilt|Left
Arbor Speed|4,500 RPM
Maximum Depth of Cut at 90°|3-1/8”
Maximum Depth of Cut at 45°|2-1/4”
Maximum Width of Dado|13/16”
Maximum Cut to Right of Blade|52”
Maximum Cut to Left of Blade|12″
Dust Port Diameter|4” Ø
Table Dimensions w/o Extensions|27”D x 20”W
Wing Size|27″ x 12″
Table Height|35″
Motor 1Ph|1.75 HP, 1Ph, 115V/220V Prewired 115V (14.8/7.4 Amp)
Overall Dimensions|32” x 83”
Net Weight|266 lbs.
Gross Weight|275 lbs.
